Amid the booming ice and snow economy, snow-making machines are no longer just simple "water-to-ice spraying devices" but sophisticated, collaborative "ice and snow manufacturing systems." As a well-regarded brand in the industry, Zhenton snow-making machines have turned the dream of "seeing snow in all seasons" into reality through in-depth research, development, and optimization of core components. Today, we’ll focus on the three core components behind the snow-spraying function of Zhenton snow-making machines, exploring how they perform their respective roles to jointly complete the amazing transformation from water to snow.

High-Pressure Atomizing Nozzles: The "Embryo Forge" for Snowflakes

If the first step in making snow is to endow water with the "potential to become snow," then the high-pressure atomizing nozzles of Zhenton snow-making machines are the key players in this step. Unlike ordinary snow-making machines that use single-aperture nozzles, Zhenton has developed multi-specification, customized nozzles to meet the needs of different scenarios—from fine-aperture spiral nozzles suitable for low-temperature environments to wide-range fan-shaped nozzles for large-area snow-making. Each type has undergone fluid dynamics simulations and field tests.

During operation, the high-pressure water pump of the Zhenton snow-making machine pressurizes water to a specific pressure value, and the water flow rushes into the distribution chamber inside the nozzle at high speed. At this point, the special flow-guiding structure inside the nozzle cuts and disperses the water flow, converting it into fine water mist with a diameter of only 50-100 microns the moment it is sprayed. These mist particles are light and have a large surface area, allowing them to quickly come into contact with the cold external air and lay the foundation for subsequent crystallization. What’s more, Zhenton’s nozzles are made of special alloy materials that are wear-resistant and corrosion-resistant. This not only solves the problems of easy clogging and wear of ordinary nozzles but also ensures that the water mist particles are uniformly sized—avoiding issues like "overly hard snow" or "failure to form snow" caused by uneven particles, and making the produced snow more similar to natural snow in terms of fluffy texture.

Intelligent Nucleators: The "Seed Cultivator" for Snowflakes

Natural snowfall requires condensation nuclei to form snowflakes, and man-made snow is equally dependent on this key link. The intelligent nucleator of Zhenton snow-making machines is the core component specially designed to cultivate "snowflake seeds." Unlike traditional nucleators that rely solely on low temperatures to form nuclei, Zhenton innovatively integrates "gas-liquid mixing regulation" technology into the nucleator design, significantly improving the efficiency and stability of ice nucleus production.

Inside the nucleator, compressed air and a small amount of water first enter a mixing chamber for full integration, forming a gas-liquid two-phase flow. Subsequently, the air flow carries the water flow through the throttle hole of the nucleator at high speed. At this moment, the air flow speed increases sharply and the pressure drops drastically—the "Joule-Thomson effect" generated instantly causes the temperature of the mixed flow to drop rapidly below the freezing point, and the water flow then condenses into tiny ice nuclei with a diameter of 1-3 microns. At the same time, the temperature-sensing module equipped in Zhenton’s nucleator can real-time monitor changes in ambient temperature: when the temperature is close to the critical freezing point, it automatically adjusts the gas-liquid mixing ratio to increase ice nucleus production; when the temperature is too low, it appropriately reduces air input to prevent ice nuclei from over-condensing into clumps. This intelligent regulation allows Zhenton snow-making machines to stably produce a sufficient number of ice nuclei within a temperature range of -2℃ to -15℃, solving the problem of traditional snow-making machines that "have low efficiency at low temperatures and cannot produce snow at relatively high temperatures."

Variable-Frequency Speed-Regulating Air Duct: The "Shaping and Conveying Steward" for Snowflakes

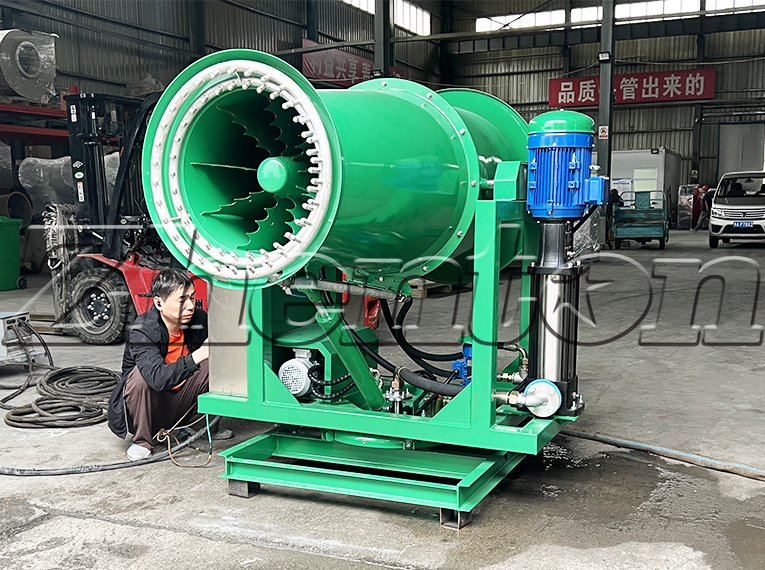

With "embryos" (water mist) and "seeds" (ice nuclei), a "booster" is still needed to make them combine, grow, and spread to designated areas—and the variable-frequency speed-regulating air duct of Zhenton snow-making machines takes on this important task. Unlike ordinary snow-making machines that use fixed-speed fans, Zhenton’s air duct is equipped with a self-developed variable-frequency motor and a streamlined air-guiding structure, which can not only precisely control the wind speed but also reduce air flow loss.

When ice nuclei and water mist are sent into the air duct, the variable-frequency motor drives the fan to generate stable air flow, which carries the ice nuclei and water mist upward. During the ascent process, the ice nuclei continuously absorb the surrounding water mist particles and gradually grow into snowflakes. At the same time, the air-guiding blades inside the air duct guide the air flow, allowing the snowflakes to spread evenly along the preset angle and avoiding "local excessive snow accumulation" or "snow-making dead corners." More thoughtfully, Zhenton’s air duct supports 0-30° pitch angle adjustment and 360° horizontal rotation. Combined with the variable-frequency speed-regulating function, it can not only create ski slopes with uniform gradients for ski resorts but also build a romantic "snowfall all over the sky" scene for ice and snow parks. In addition, the outer shell of the air duct is made of thermal insulation and noise-reduction materials, which not only reduces the impact of low winter temperatures on the motor but also lowers operating noise, making the snow-making process more environmentally friendly and quieter.

It is the collaborative work of these three core components, coupled with Zhenton’s integration and optimization of the overall system, that enables Zhenton snow-making machines to stably produce high-quality snow in different environments. From professional ski slopes in ski resorts to ice and snow landscapes in scenic spots, Zhenton snow-making machines rely on the meticulous polishing of core components to provide reliable equipment support for every "ice and snow feast," allowing more people to experience the charm of ice and snow up close.
