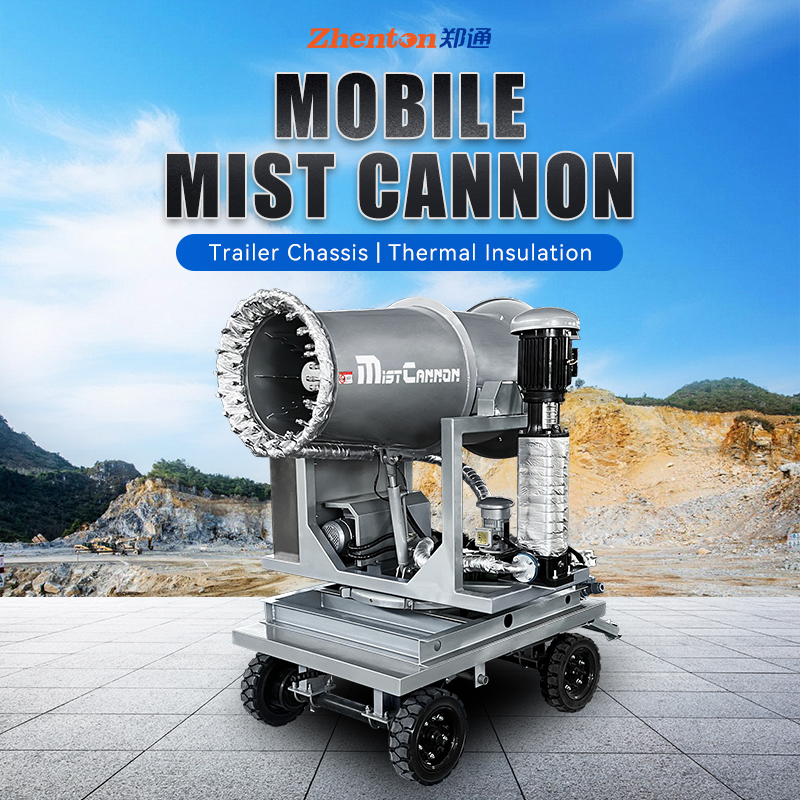

Trailer Fog Cannon Machine for Dust Control in Sewage Treatment― $2,900.00 CE

The 40 - meter trolley - mounted fog cannon machine sprays mist 40m to control dust, ideal for various sites, with mobility and high efficiency.

Calm range：40mM Color：gray Rotation angle：0-340°

[email protected]+8613907311223

Share With:

Home / Goods

Description
Parameter
Related Products
Inquiry

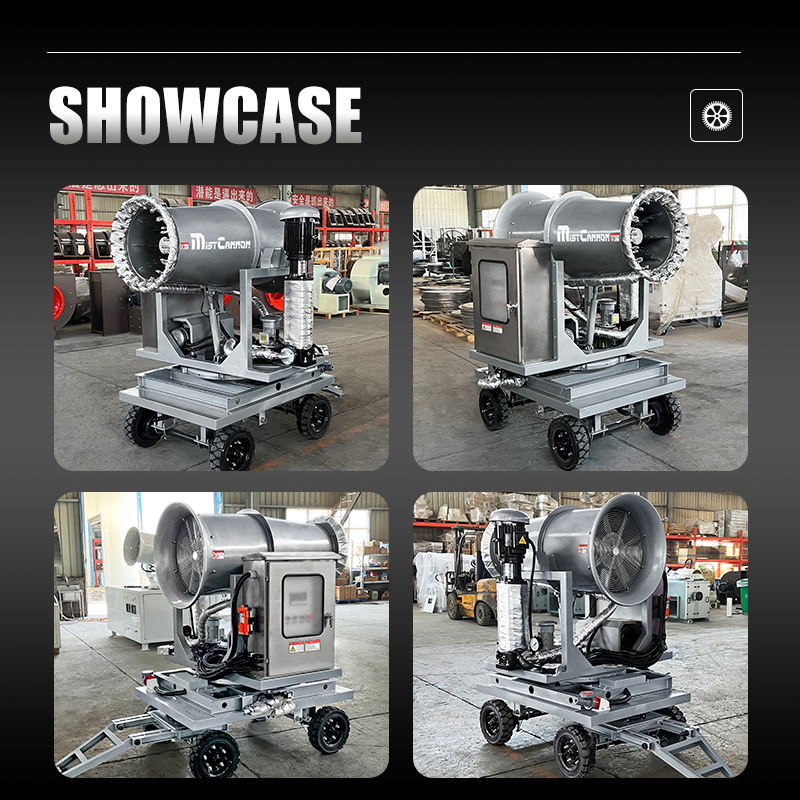

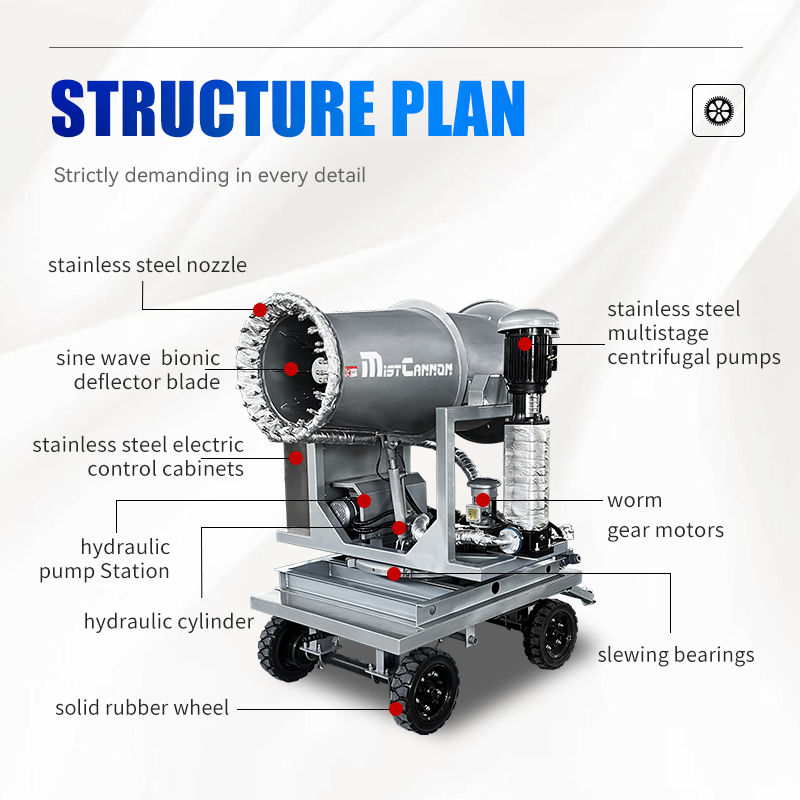

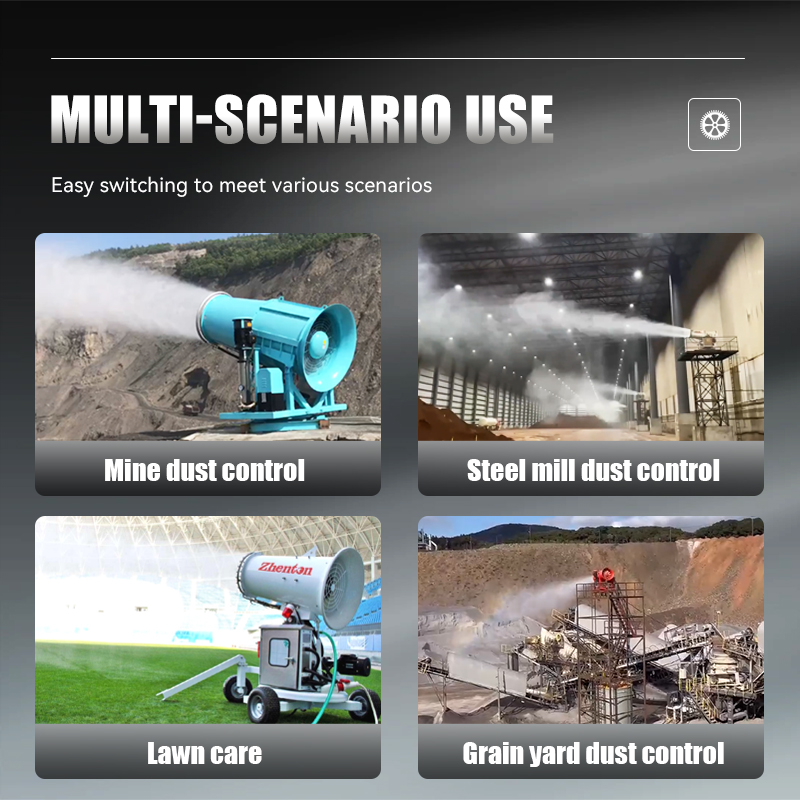

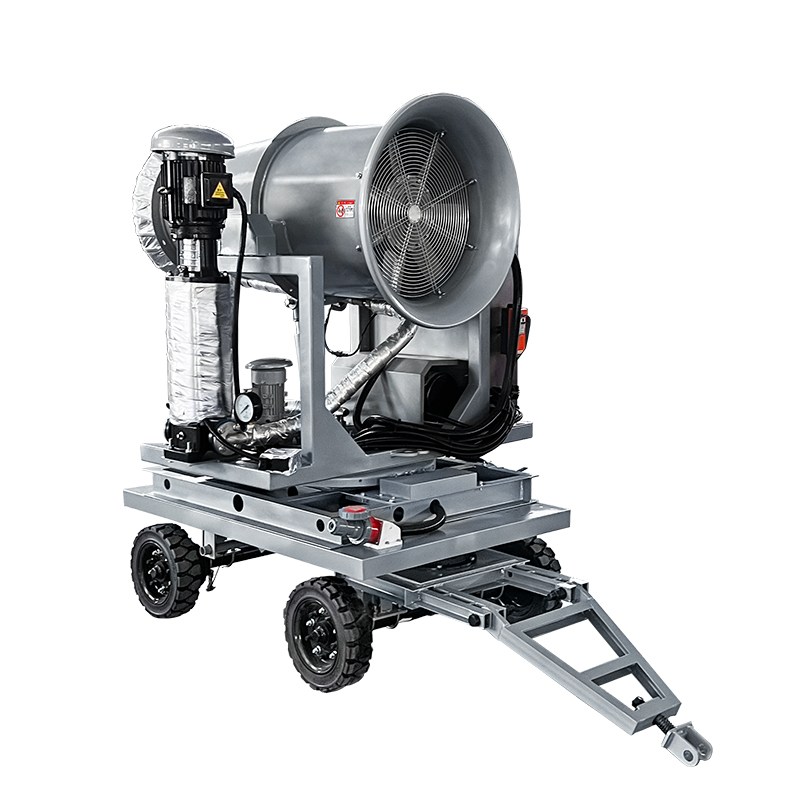

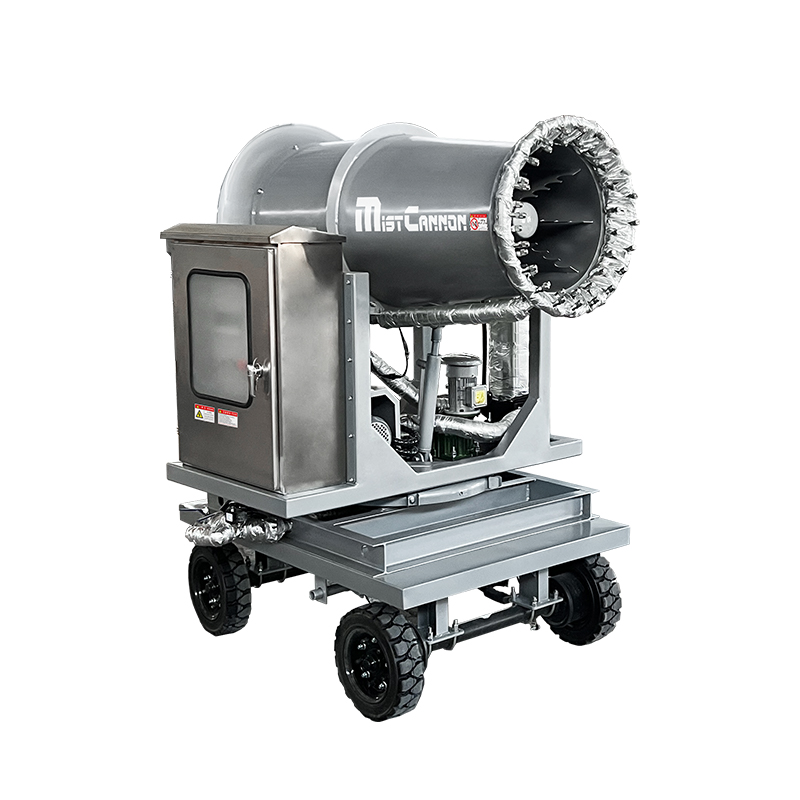

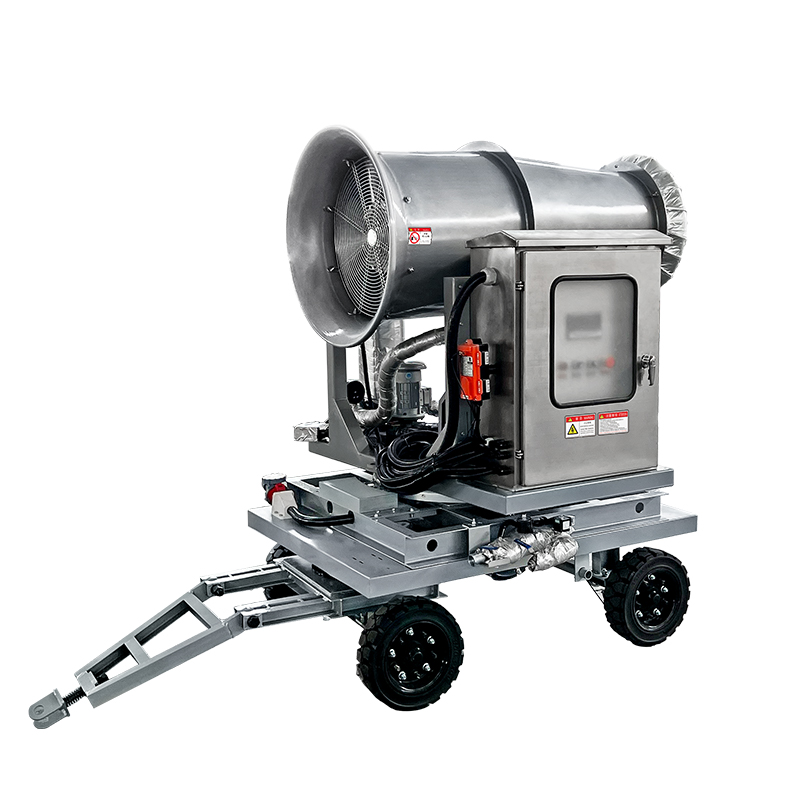

The 40 - meter trolley - mounted fog cannon machine is a movable dust control equipment. Usually mounted on a trolley frame, it atomizes water into fine particles through high pressure and can spray up to about 40 meters. It can effectively adsorb dust and particles in the air, suitable for dust control in construction sites, mines, roads and other places. It has the characteristics of strong mobility, wide coverage and high dust control efficiency. Some equipment can also be used with water tanks or external water sources, featuring simple operation and environmental protection and energy saving.

切片_02.jpg 切片_03.jpg 切片_07.jpg 切片_08.jpg 切片_04.jpg 切片_05.jpg 切片_09.jpg 切片_06.jpg

Description

MODEl	Static wind range (m)	Fan power (Kw)	Pump power (Kw)	Total power (Kw)	Pitch angle		Rotation angle	sprinkler		Noise at 20 meters (dB)	Weight(kg)
MODEl	Static wind range (m)	Fan power (Kw)	Pump power (Kw)	Total power (Kw)	Split	bax	Rotation angle	Standard	certer nozzle	Noise at 20 meters (dB)	Weight(kg)
ZT-20	20~25	1.5	1.1	≤3	-5~35°	-5~40°	0~350°	Single water ring 12	11	≤60	260
ZT-30	25~35	2.2	1.5	≤5	-5~35°	-5~40°	0~350°	Single water ring 12	11	≤65	290
ZT-35	35~40	3	2.2	≤6	-5~35°	-5~40°	0~350°	Single water ring 12	11	≤65	330

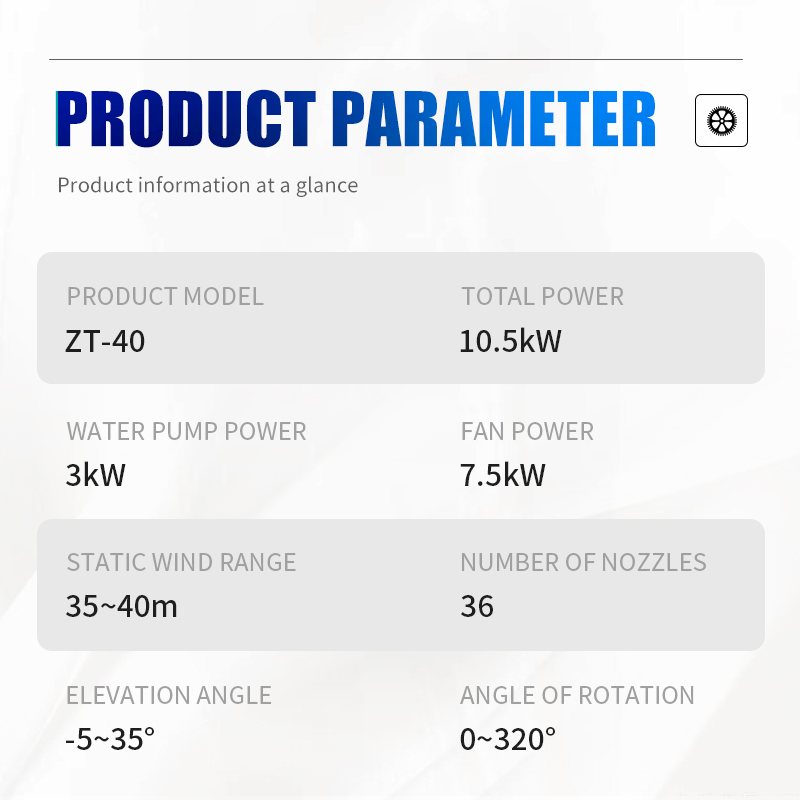

ZT-40	40~50	7.5	3	≤13	-5~35°	-5~40°	0~350°	Single water ring 24	15	≤68	440
ZT-50	55~60	11	3	≤16	-5~35°	-5~40°	0~350°	Single water ring 24	15	≤68	530
ZT-60	60~70	15	4	≤21	-5~35°	-5~40°	0~350°	Single water ring 30	15	≤75	640
ZT-70	70~80	22	5.5	≤30	-5~35°	-5~40°	0~350°	Single water ring 36	31	≤75	850
ZT-80	75~85	30	5.5	≤37	-5~35°	-5~40°	0~350°	Single water ring 46	31	≤75	960
ZT-90	80~90	37	7.5	≤46	-5~35°	-5~40°	0~350°	Single water ring 70	31	≤80	1580
ZT-100	90~100	45	7.5	≤55	-5~45°	-5~45°	0~350°	Single water ring 70	31	≤80	1610
ZT-110	100~110	55	11	≤68	-5~45°		0~350°	Single water ring 100	31	≤80	1850
ZT-120	100~120	75	15	≤92	-5~45°		0~350°	Single water ring 110	31	≤85	2350
ZT-130	110~140	75	18.5	≤86	-5~45°		0~350°	Single water ring 120	31	≤90	2850
