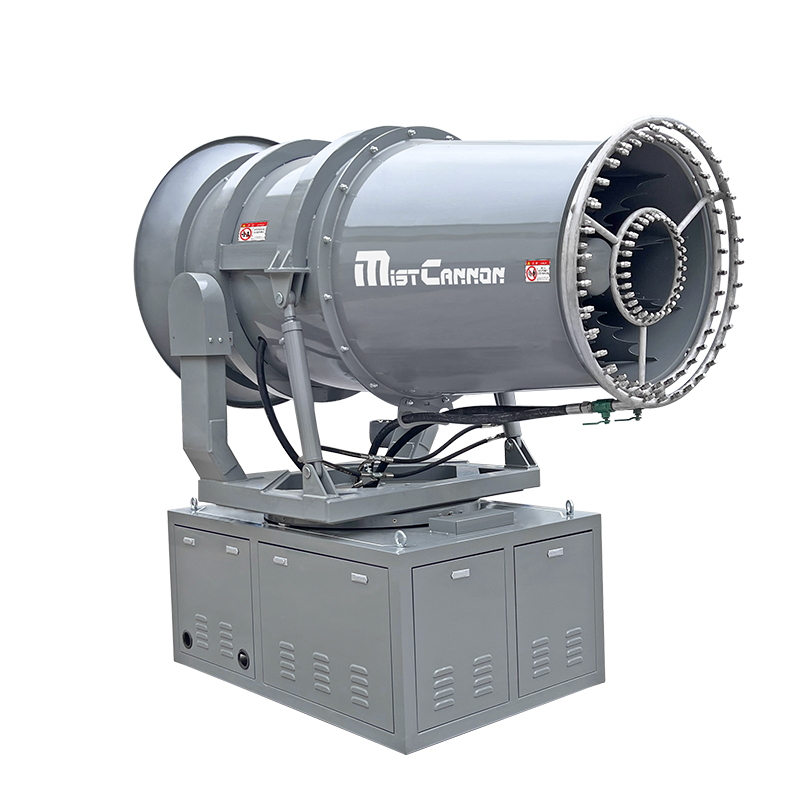

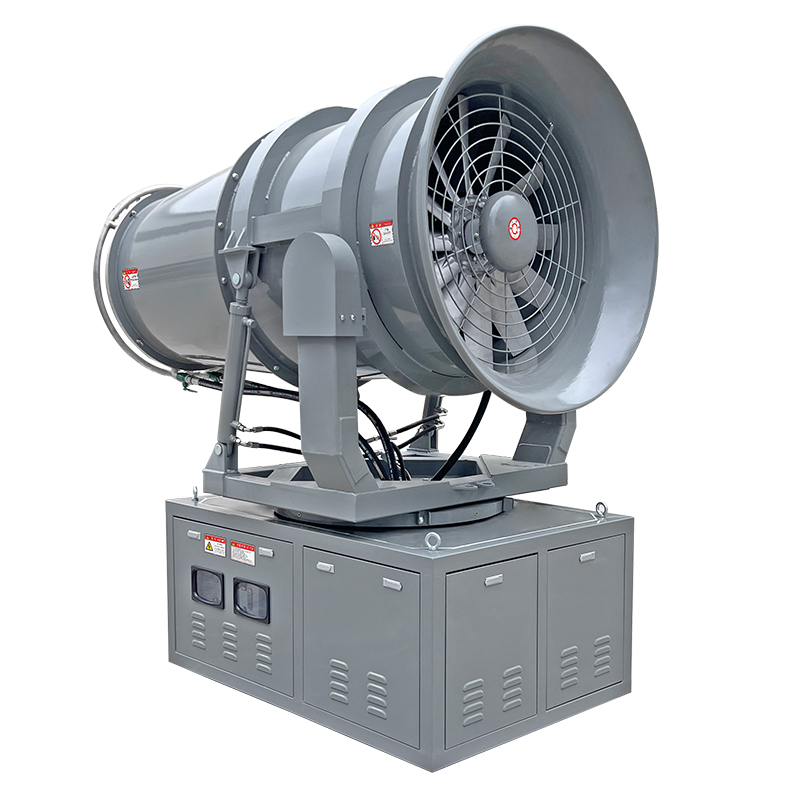

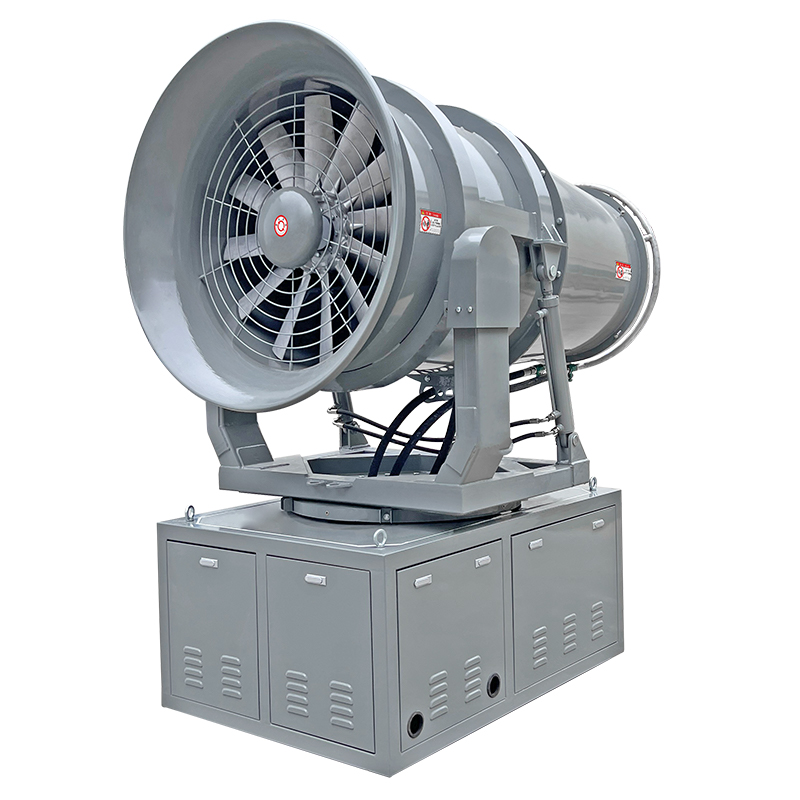

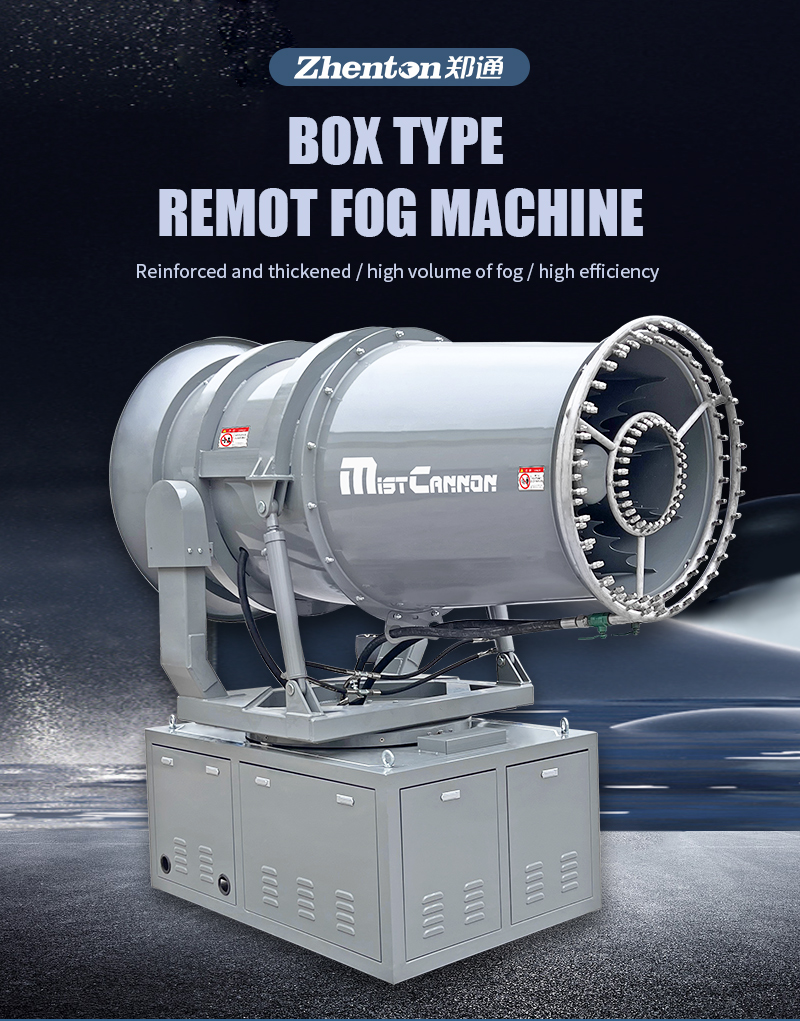

70 Meters Fog Cannon Machine for Dust Suppression in Sprinkler Package―$50,000 CE

This kind of fog machine can evenly spray water or medicinal liquid in the form of mist to the wheat field,effectively covering a large area and improving the operational efficiency.It adopts high-pressure nozzles and specially designed spray nozzles.…

Calm range:70mM Color:Customizable Rotation angle:0-340°

Share With:

Youtube Facebook Instagram Twitter

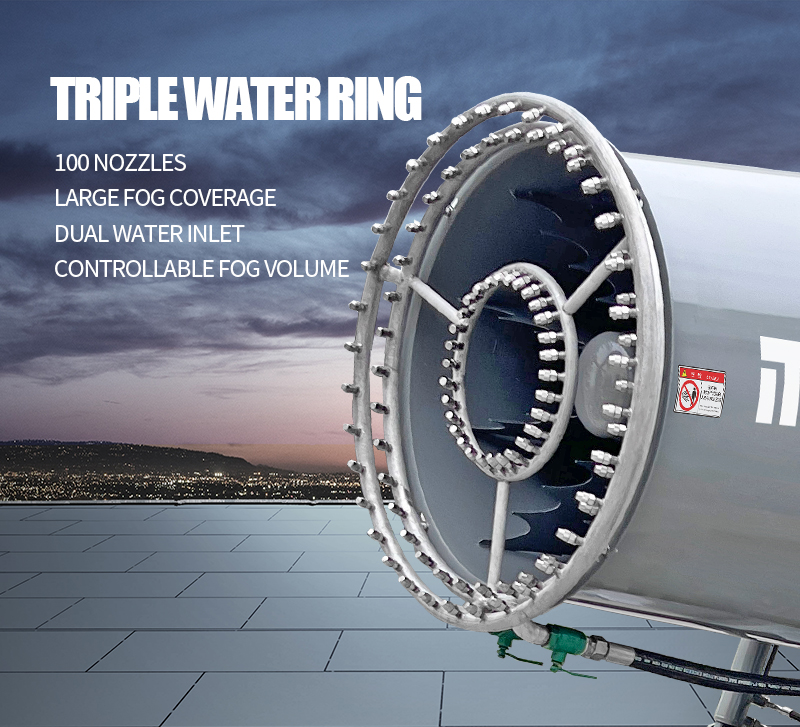

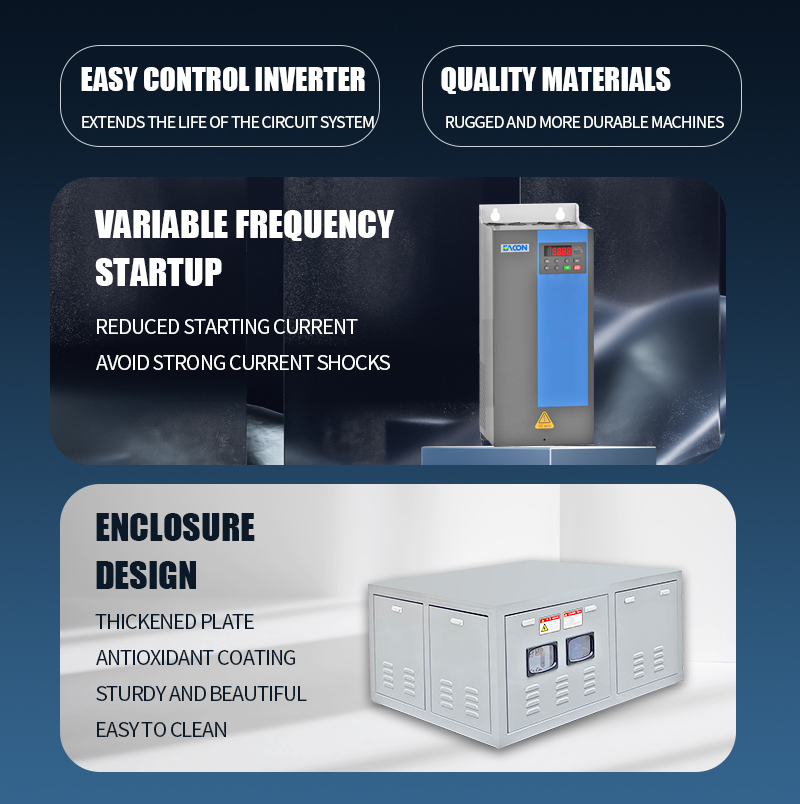

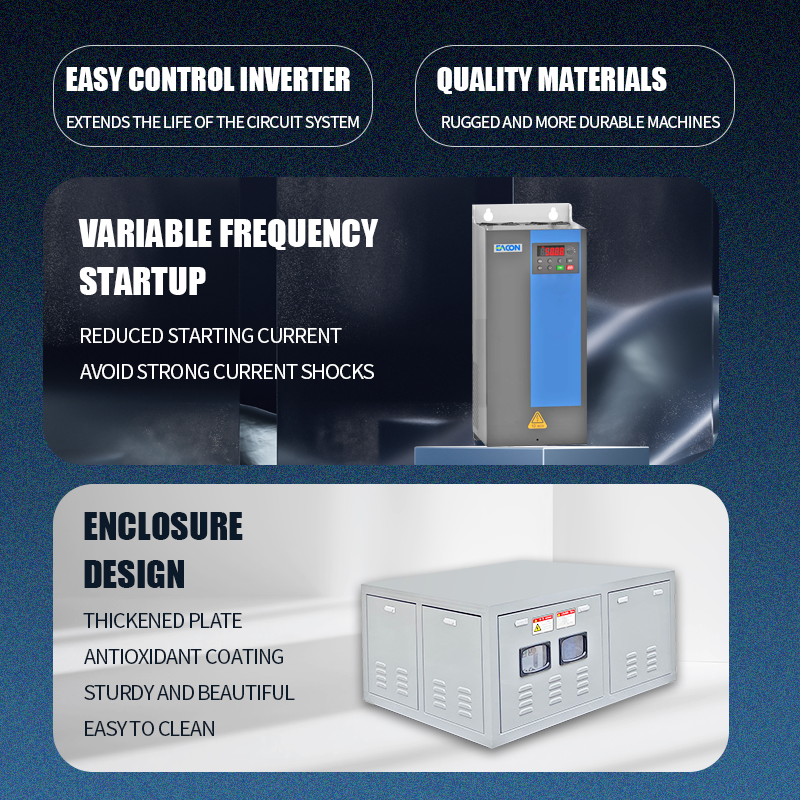

70m range fog cannon machine is a kind of agricultural machinery and equipment, usually used for spraying pesticides, fertilizers or irrigation and other operations. It has a long spraying distance and high efficiency working characteristics, and plays an important role in agricultural productionThis kind of fog machine can evenly spray water or medicinal liquid in the form of mist to the wheat field, effectively covering a large area and improving the operational efficiency. It adopts high-pressure nozzles and specially designed spray nozzles, which enable the water or medicinal liquid to form fine droplets, which are suspended in the air for a long time and evenly distributed, so as to achieve a better spraying effectLong range, wide coverage, good dust removal effect, double water ring design, high work efficiency. The control method is flexible, the start-up is convenient; the structure is reasonable, the operation is stable, and the noise is lowUniform atomization, wide coverage, fine atomized particles, intelligent control mode, stable operation, safe and reliable useIt is movable, loadable, fixable, and highly adaptable, which can accelerate dust settlement and inhibit dust diffusion.


MODEl Static wind
range (m)
Fan power
(Kw)
Pump power
(Kw)
Total power
(Kw)
Pitch angle Rotation angle sprinkler Noise at 20
meters (dB)
Weight(kg)
Split bax Standard certer nozzle
ZT-20 20~25 1.5 1.1 ≤3 -5~35° -5~40° 0~350° Single water ring 12 11 ≤60 260
ZT-30 25~35 2.2 1.5 ≤5 -5~35° -5~40° 0~350° Single water ring 12 11 ≤65 290
ZT-35 35~40 3 2.2 ≤6 -5~35° -5~40° 0~350° Single water ring 12 11 ≤65 330
ZT-40 40~50 7.5 3 ≤13 -5~35° -5~40° 0~350° Single water ring 24 15 ≤68 440
ZT-50 55~60 11 3 ≤16 -5~35° -5~40° 0~350° Single water ring 24 15 ≤68 530
ZT-60 60~70 15 4 ≤21 -5~35° -5~40° 0~350° Single water ring 30 15 ≤75 640

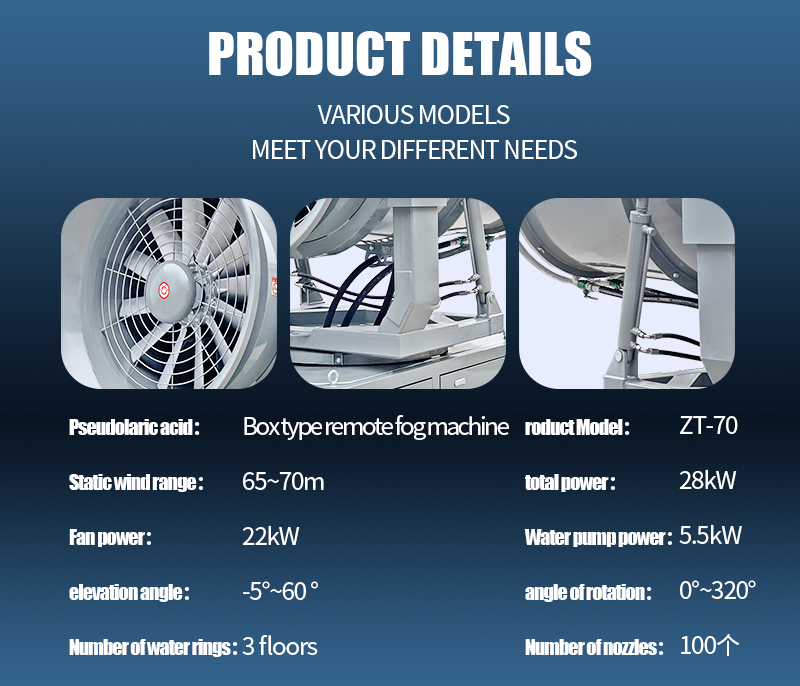

ZT-70 70~80 22 5.5 ≤30 -5~35° -5~40° 0~350° Single water ring 36 31 ≤75 850
ZT-80 75~85 30 5.5 ≤37 -5~35° -5~40° 0~350° Single water ring 46 31 ≤75 960
ZT-90 80~90 37 7.5 ≤46 -5~35° -5~40° 0~350° Single water ring 70 31 ≤80 1580
ZT-100 90~100 45 7.5 ≤55 -5~45° -5~45° 0~350° Single water ring 70 31 ≤80 1610
ZT-110 100~110 55 11 ≤68 -5~45° 0~350° Single water ring 100 31 ≤80 1850
ZT-120 100~120 75 15 ≤92 -5~45° 0~350° Single water ring 110 31 ≤85 2350
ZT-130 110~140 75 18.5 ≤86 -5~45° 0~350° Single water ring 120 31 ≤90 2850
