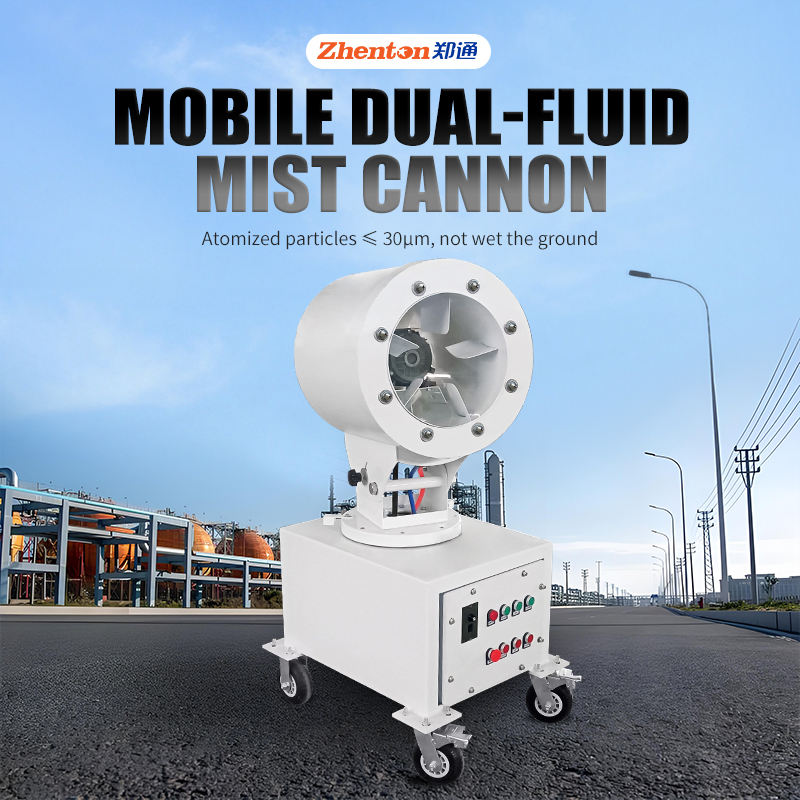

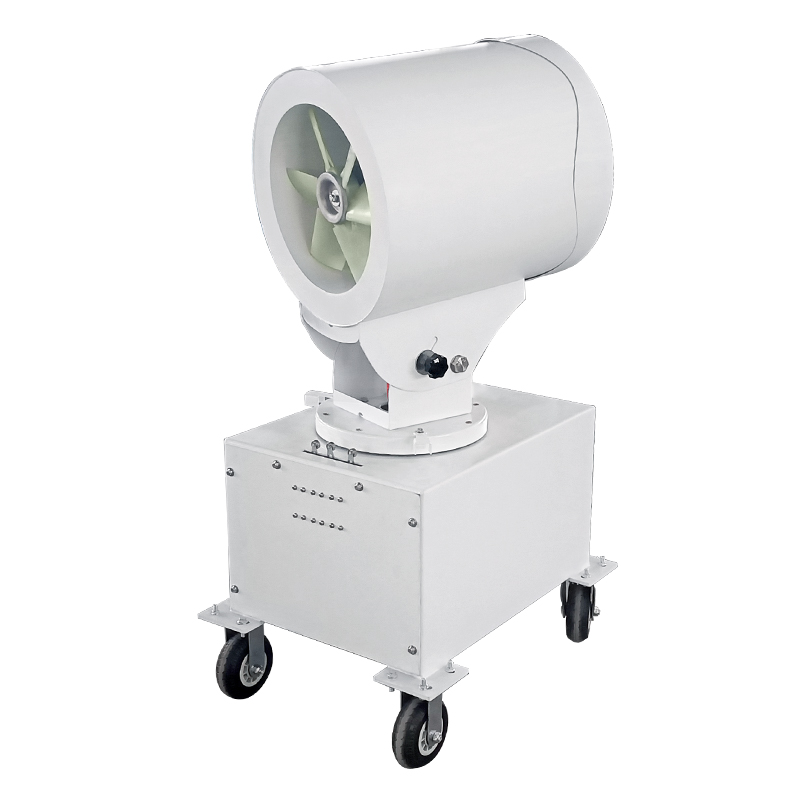

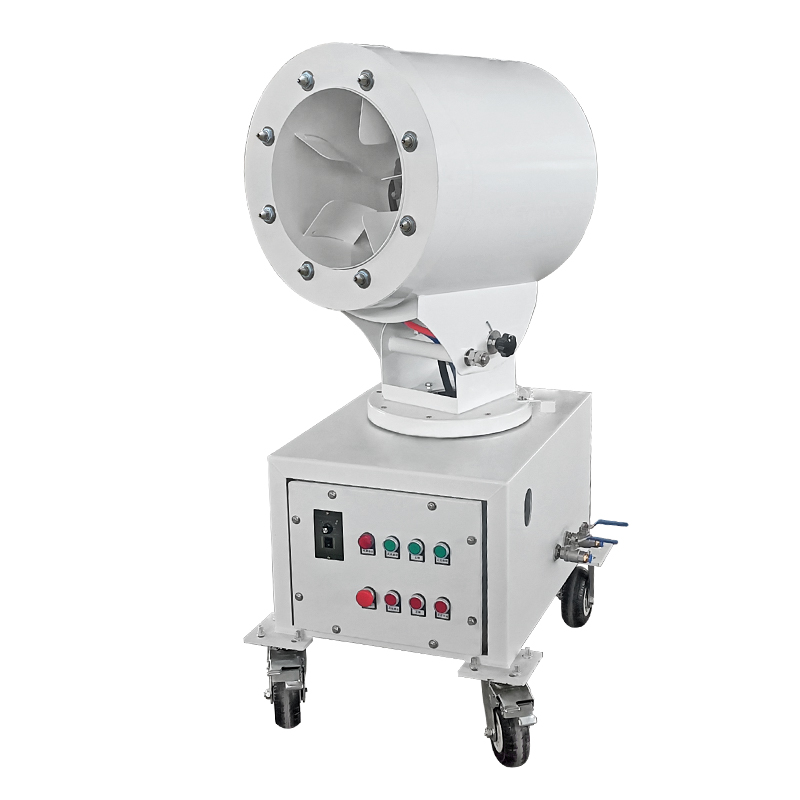

Dust Suppression Two-fluid 20-meter Mist Cannon Machine in Pipe Mill Misting ― $800.00

The 20m two-fluid mist cannon cannon machine, with fine mist and 20m range, works efficiently in steel plants for dust reduction, equipment protection and environmental compliance.

Calm range:20mM Color:white Rotation angle:0-320°

Share With:

Youtube Facebook Instagram Twitter

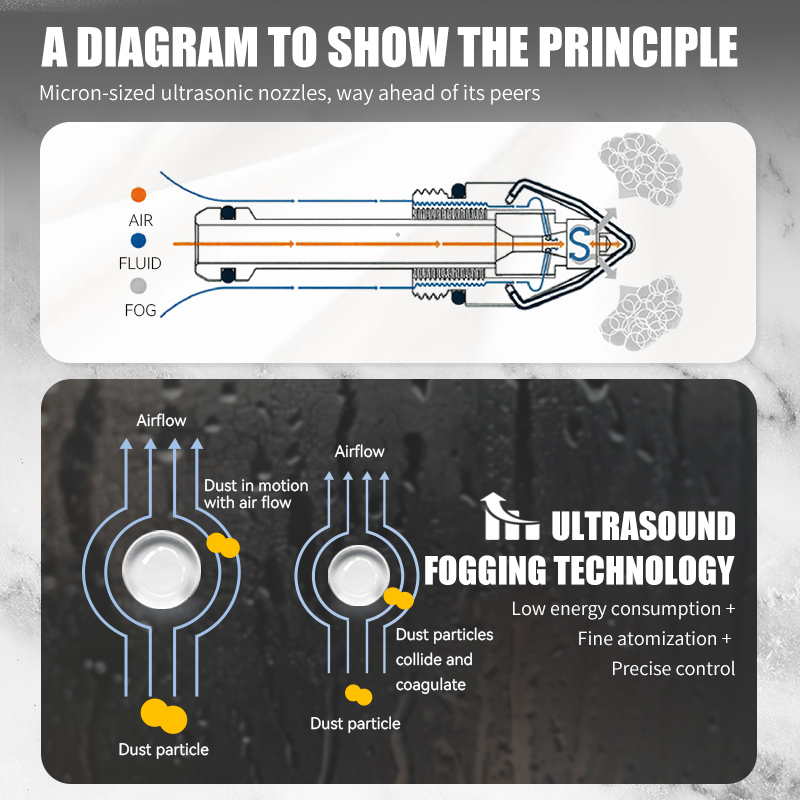

The 20-meter two-fluid mist cannon machine adopts water and compressed air mixing technology, producing fine water mist particles (≤30 microns) with uniform coverage. Its 20-meter range is precisely controllable, and it is water-saving and energy-efficient, capable of stable operation in high-temperature and dusty environments.

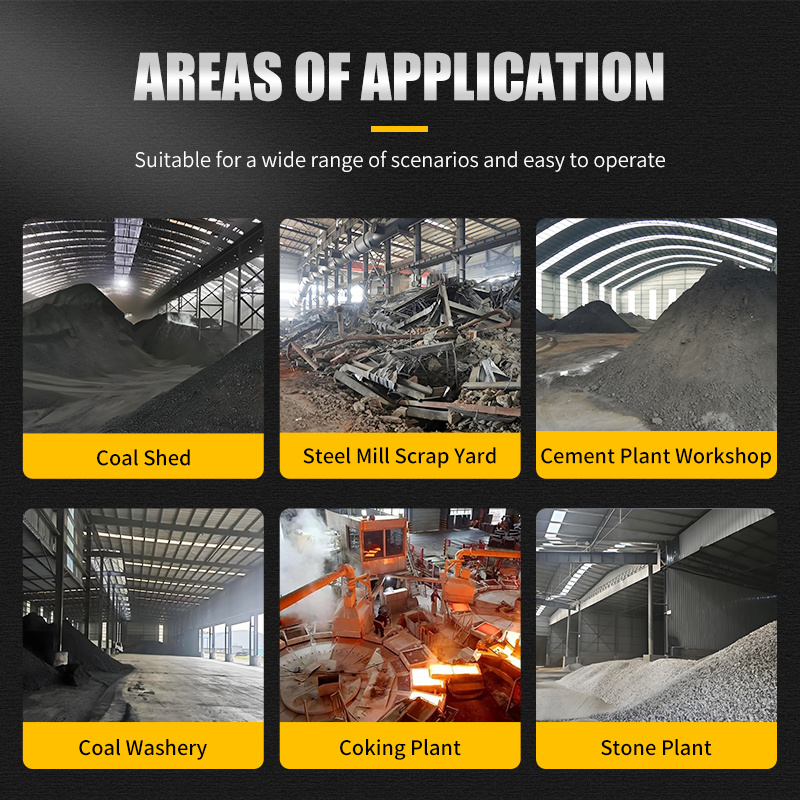

When applied in steel plants, it can efficiently absorb dust such as iron ore and coke, reduce the dust concentration in the working environment, reduce equipment wear, help enterprises meet environmental protection emission requirements, and flexibly adapt to medium-distance scenarios such as material yards and steelmaking workshops.

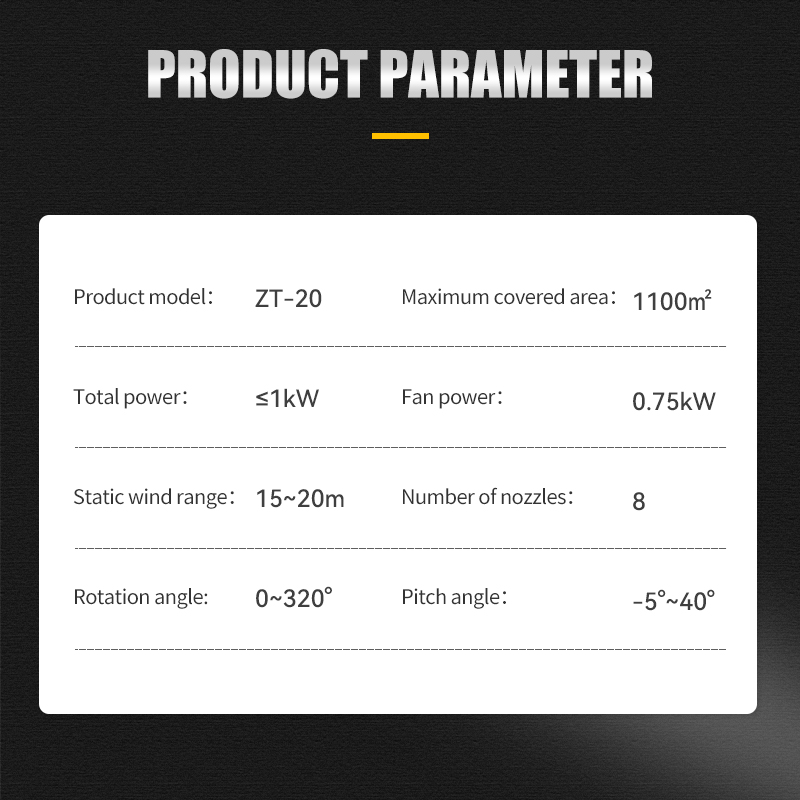

MODEl Static wind
range (m)
Fan power
(Kw)
Pump power
(Kw)
Total power
(Kw)
Pitch angle Rotation angle sprinkler Noise at 20
meters (dB)
Weight(kg)
Split bax Standard certer nozzle
ZT-20 20~25 1.5 1.1 ≤3 -5~35° -5~40° 0~350° Single water ring 12 11 ≤60 260
ZT-30 25~35 2.2 1.5 ≤5 -5~35° -5~40° 0~350° Single water ring 12 11 ≤65 290
ZT-35 35~40 3 2.2 ≤6 -5~35° -5~40° 0~350° Single water ring 12 11 ≤65 330
ZT-40 40~50 7.5 3 ≤13 -5~35° -5~40° 0~350° Single water ring 24 15 ≤68 440
ZT-50 55~60 11 3 ≤16 -5~35° -5~40° 0~350° Single water ring 24 15 ≤68 530
ZT-60 60~70 15 4 ≤21 -5~35° -5~40° 0~350° Single water ring 30 15 ≤75 640
ZT-70 70~80 22 5.5 ≤30 -5~35° -5~40° 0~350° Single water ring 36 31 ≤75 850
ZT-80 75~85 30 5.5 ≤37 -5~35° -5~40° 0~350° Single water ring 46 31 ≤75 960
ZT-90 80~90 37 7.5 ≤46 -5~35° -5~40° 0~350° Single water ring 70 31 ≤80 1580
ZT-100 90~100 45 7.5 ≤55 -5~45° -5~45° 0~350° Single water ring 70 31 ≤80 1610
ZT-110 100~110 55 11 ≤68 -5~45° 0~350° Single water ring 100 31 ≤80 1850
ZT-120 100~120 75 15 ≤92 -5~45° 0~350° Single water ring 110 31 ≤85 2350
ZT-130 110~140 75 18.5 ≤86 -5~45° 0~350° Single water ring 120 31 ≤90 2850
