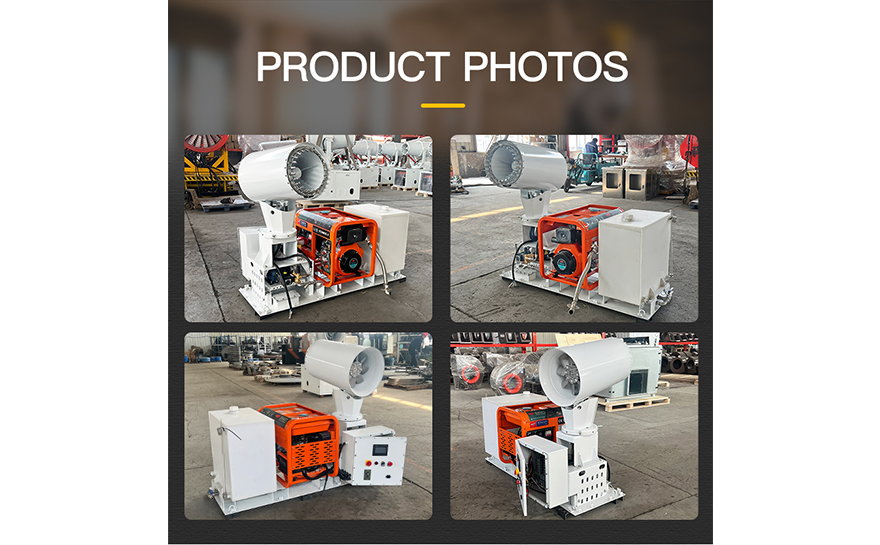

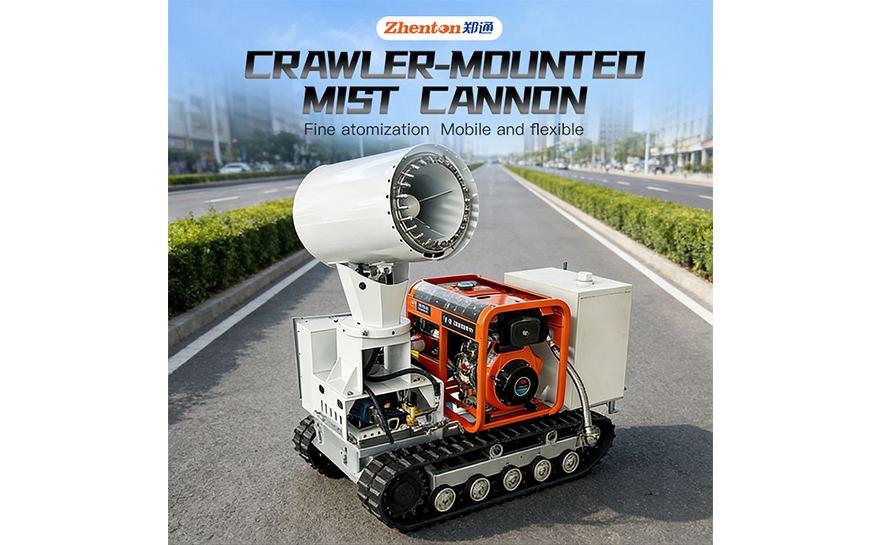

20m Crawler-Mounted Mist Cannon for New Zealand Kiwifruit Orchard Cooling

Tracked mist cannons are used in New Zealand kiwifruit orchards to reduce heat stress by producing fine mist cooling, improving microclimate conditions, fruit quality, and overall orchard productivity.

Calm range:20mM Color:White Rotation angle:0-340°

Share With:

Youtube Facebook Instagram Twitter

In New Zealand kiwifruit orchards, high summer temperatures and strong sunlight can easily cause heat stress, affecting fruit development, sugar accumulation, and overall quality. To address this challenge, tracked mist cannons are increasingly used as an effective solution for orchard cooling and microclimate control.

A mist cannon works by atomizing water into ultra-fine droplets that rapidly evaporate in the air, absorbing heat and reducing the surrounding temperature. Compared with traditional irrigation methods, mist cooling lowers ambient heat without creating waterlogging or damaging fruit and leaves, making it especially suitable for kiwifruit orchards that require carefully controlled growing conditions.

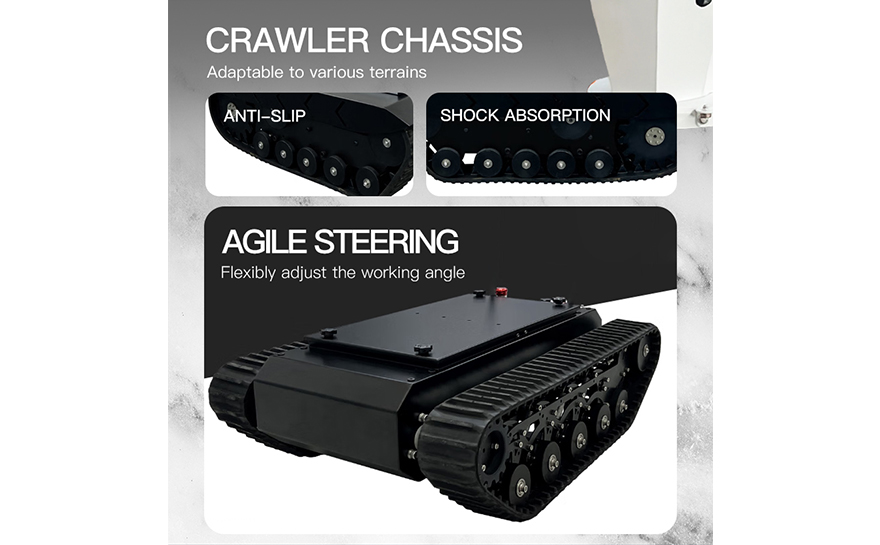

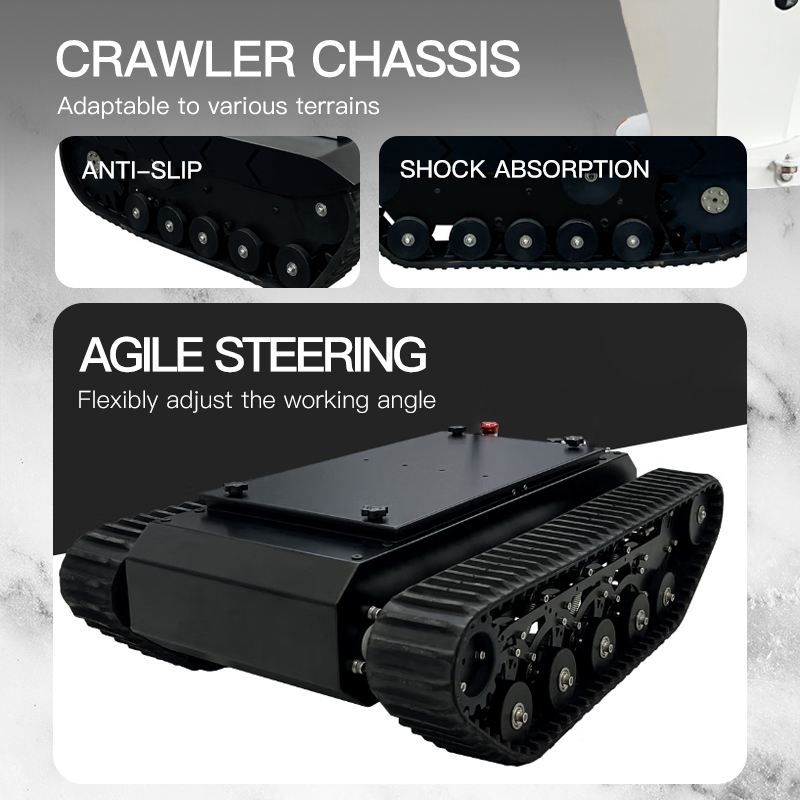

The tracked chassis allows the mist cannon to move smoothly across uneven orchard terrain, including grassy areas, soft soil, and gentle slopes. This mobility enables operators to target high-temperature zones and adjust coverage according to orchard layout, wind direction, and daily temperature changes.

By improving airflow, reducing heat stress, and maintaining a stable growing environment, tracked mist cannons help enhance fruit quality and yield. Their flexible operation and efficient cooling performance make them a practical tool for modern kiwifruit orchard.

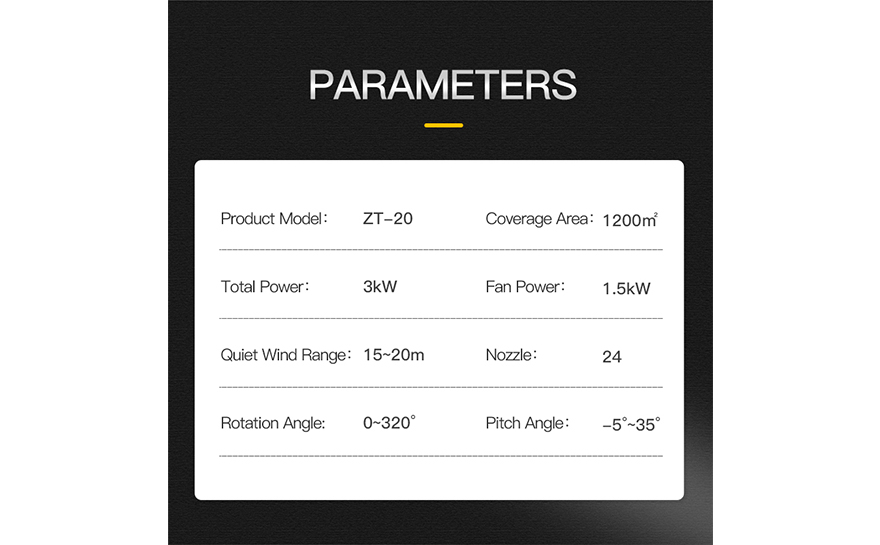

MODEl Static wind
range (m)
Fan power
(Kw)
Pump power
(Kw)
Total power
(Kw)
Pitch angle Rotation angle sprinkler Noise at 20
meters (dB)
Weight(kg)
Split bax Standard certer nozzle
ZT-20 20~25 1.5 1.1 ≤3 -5~35° -5~40° 0~350° Single water ring 12 11 ≤60 260
ZT-30 25~35 2.2 1.5 ≤5 -5~35° -5~40° 0~350° Single water ring 12 11 ≤65 290
ZT-35 35~40 3 2.2 ≤6 -5~35° -5~40° 0~350° Single water ring 12 11 ≤65 330
ZT-40 40~50 7.5 3 ≤13 -5~35° -5~40° 0~350° Single water ring 24 15 ≤68 440
ZT-50 55~60 11 3 ≤16 -5~35° -5~40° 0~350° Single water ring 24 15 ≤68 530
ZT-60 60~70 15 4 ≤21 -5~35° -5~40° 0~350° Single water ring 30 15 ≤75 640
ZT-70 70~80 22 5.5 ≤30 -5~35° -5~40° 0~350° Single water ring 36 31 ≤75 850
ZT-80 75~85 30 5.5 ≤37 -5~35° -5~40° 0~350° Single water ring 46 31 ≤75 960
ZT-90 80~90 37 7.5 ≤46 -5~35° -5~40° 0~350° Single water ring 70 31 ≤80 1580
ZT-100 90~100 45 7.5 ≤55 -5~45° -5~45° 0~350° Single water ring 70 31 ≤80 1610
ZT-110 100~110 55 11 ≤68 -5~45° 0~350° Single water ring 100 31 ≤80 1850
ZT-120 100~120 75 15 ≤92 -5~45° 0~350° Single water ring 110 31 ≤85 2350
ZT-130 110~140 75 18.5 ≤86 -5~45° 0~350° Single water ring 120 31 ≤90 2850
