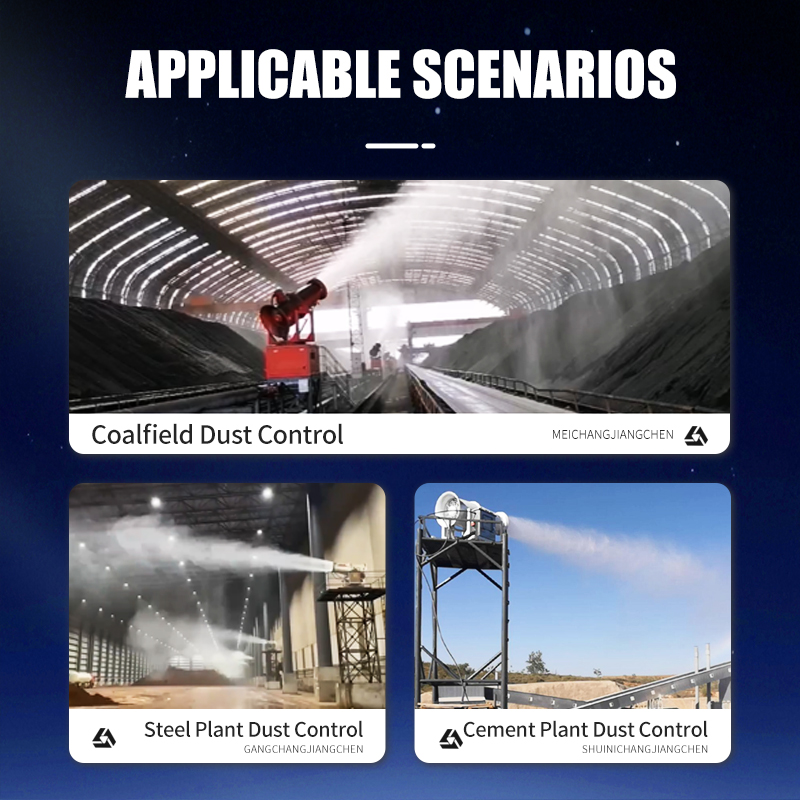

Fog cannon machine suitable for industrial plants (such as cement plants), mine working faces, construction sites, roads, ports and other scenarios. It suppresses dust and improves the environment by spraying mist.
Calm range：40mM Color：white(customizable) Rotation angle：0-340°

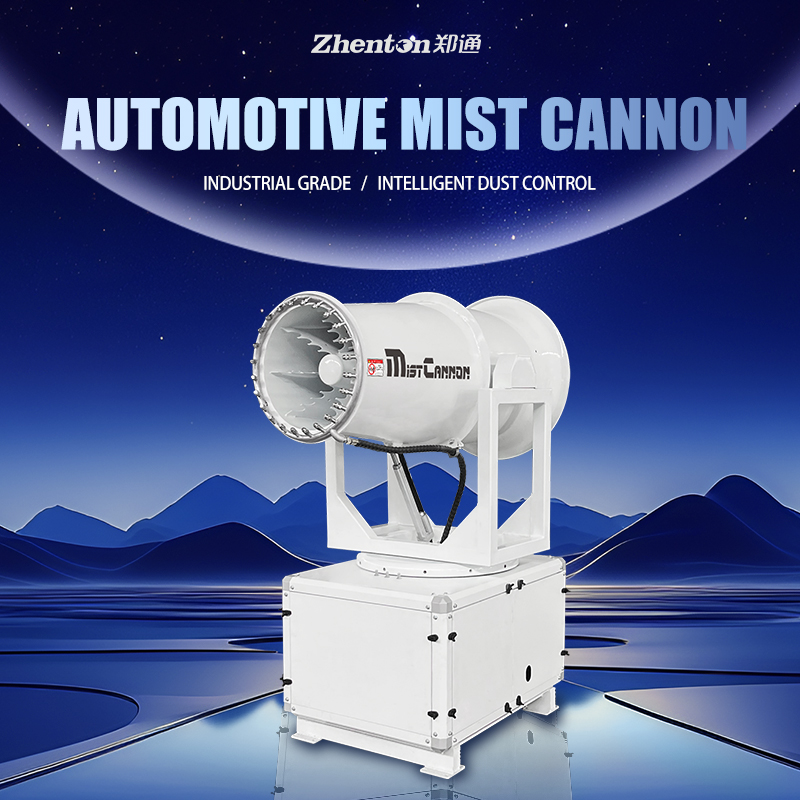

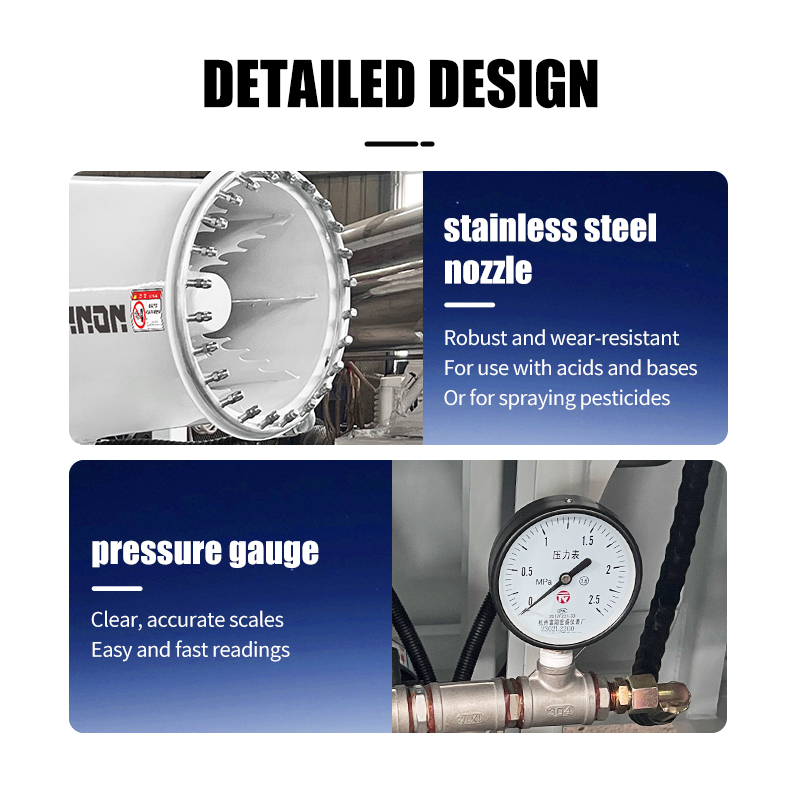

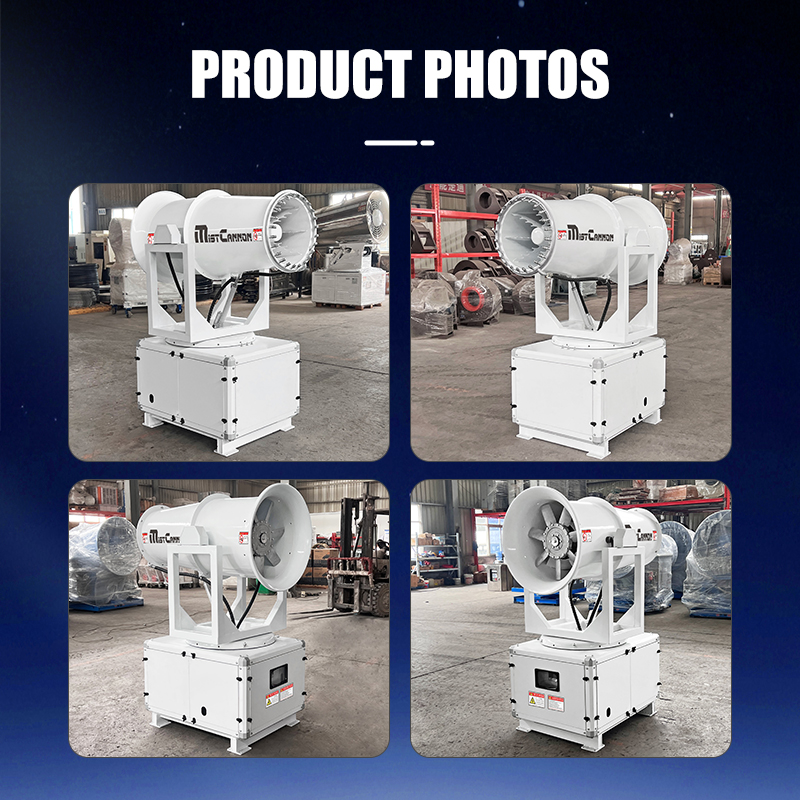

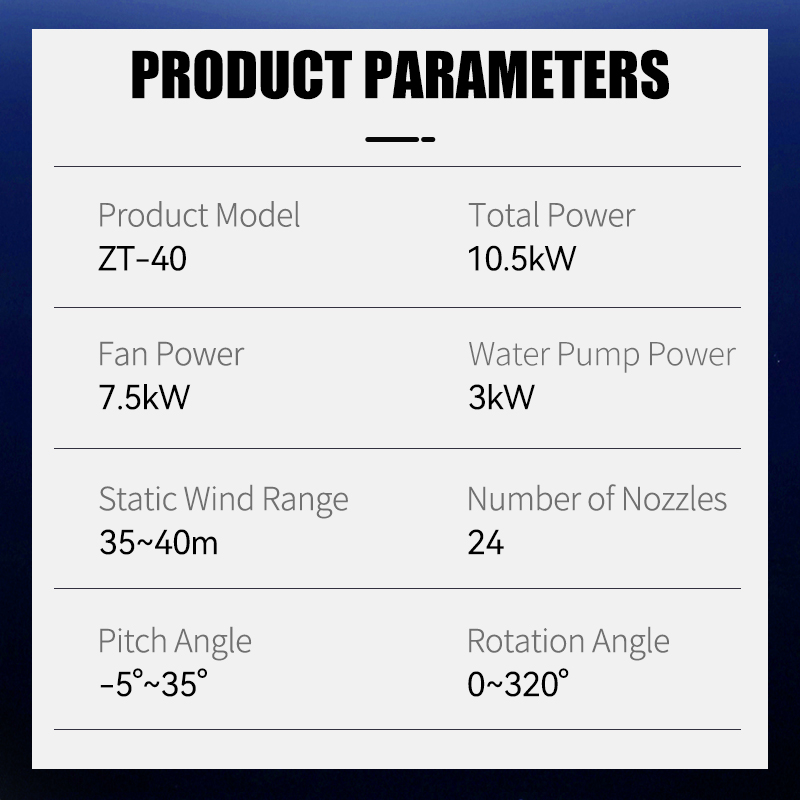

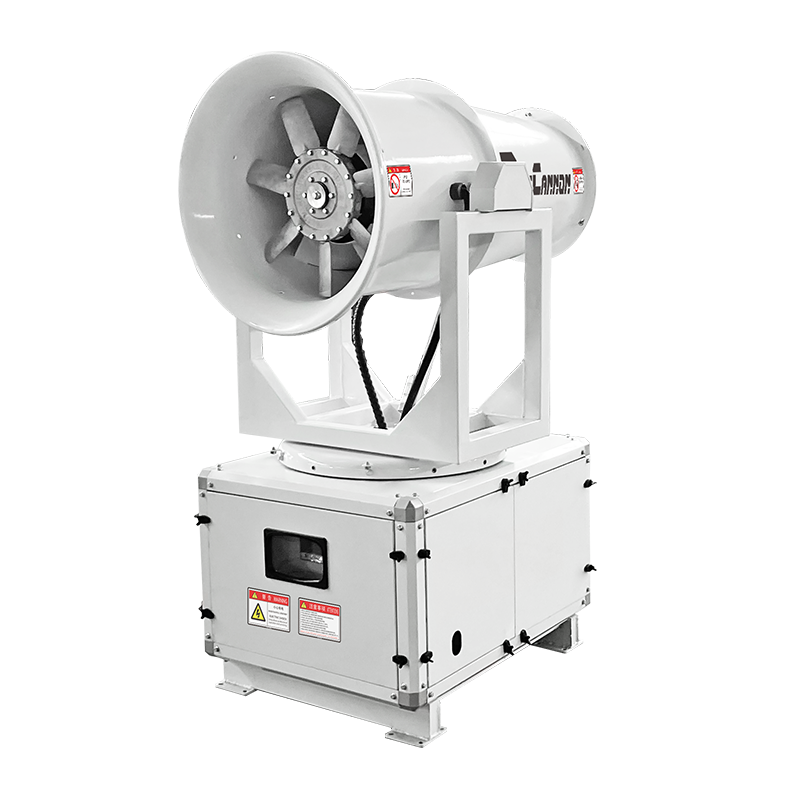

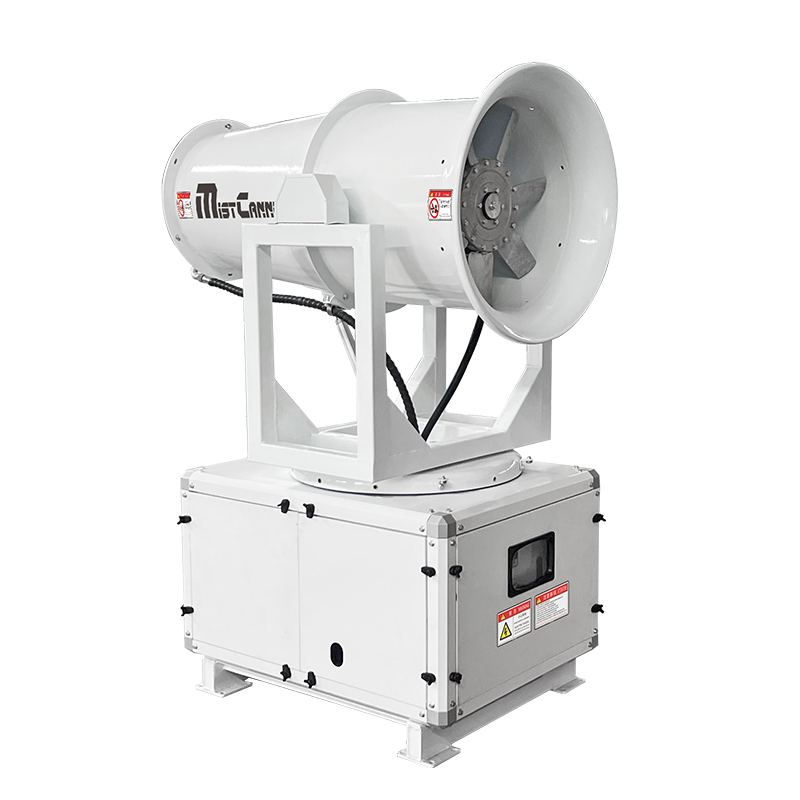

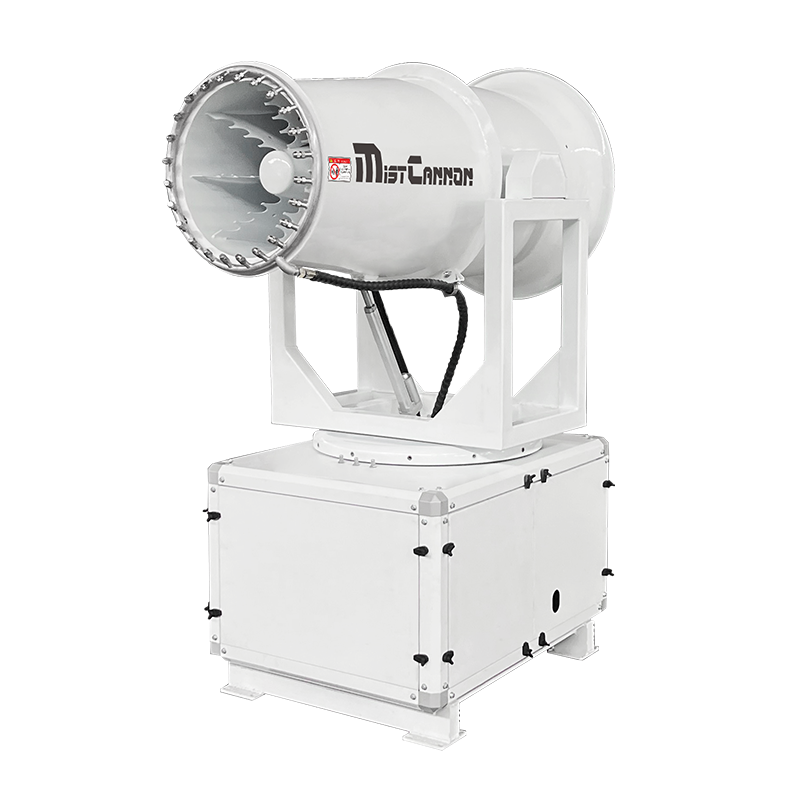

The ZT-40 40-meter box-type fog cannon machine has a product model of ZT-40, with a total power of 10.5kW (7.5kW for the fan and 3kW for the water pump). It is equipped with 24 nozzles, a static wind range of 35 - 40m, a pitch angle of -5° - 35°, and a rotation angle of 0 - 320°. It is suitable for industrial plants (such as cement plants), mine working faces, construction sites, roads, ports and other scenarios. It suppresses dust and improves the environment by spraying mist.
Description
| MODEl |
Static wind range (m) |
Fan power (Kw) |
Pump power (Kw) |
Total power (Kw) |
Pitch angle | Rotation angle | sprinkler |
Noise at 20 meters (dB) |
Weight(kg) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Split | bax | Standard | certer nozzle | ||||||||
| ZT-20 | 20~25 | 1.5 | 1.1 | ≤3 | -5~35° | -5~40° | 0~350° | Single water ring 12 | 11 | ≤60 | 260 |
| ZT-30 | 25~35 | 2.2 | 1.5 | ≤5 | -5~35° | -5~40° | 0~350° | Single water ring 12 | 11 | ≤65 | 290 |
| ZT-35 | 35~40 | 3 | 2.2 | ≤6 | -5~35° | -5~40° | 0~350° | Single water ring 12 | 11 | ≤65 | 330 |
| ZT-40 | 40~50 | 7.5 | 3 | ≤13 | -5~35° | -5~40° | 0~350° | Single water ring 24 | 15 | ≤68 | 440 |
| ZT-50 | 55~60 | 11 | 3 | ≤16 | -5~35° | -5~40° | 0~350° | Single water ring 24 | 15 | ≤68 | 530 |
| ZT-60 | 60~70 | 15 | 4 | ≤21 | -5~35° | -5~40° | 0~350° | Single water ring 30 | 15 | ≤75 | 640 |
| ZT-70 | 70~80 | 22 | 5.5 | ≤30 | -5~35° | -5~40° | 0~350° | Single water ring 36 | 31 | ≤75 | 850 |
| ZT-80 | 75~85 | 30 | 5.5 | ≤37 | -5~35° | -5~40° | 0~350° | Single water ring 46 | 31 | ≤75 | 960 |
| ZT-90 | 80~90 | 37 | 7.5 | ≤46 | -5~35° | -5~40° | 0~350° | Single water ring 70 | 31 | ≤80 | 1580 |
| ZT-100 | 90~100 | 45 | 7.5 | ≤55 | -5~45° | -5~45° | 0~350° | Single water ring 70 | 31 | ≤80 | 1610 |
| ZT-110 | 100~110 | 55 | 11 | ≤68 | -5~45° | 0~350° | Single water ring 100 | 31 | ≤80 | 1850 | |
| ZT-120 | 100~120 | 75 | 15 | ≤92 | -5~45° | 0~350° | Single water ring 110 | 31 | ≤85 | 2350 | |
| ZT-130 | 110~140 | 75 | 18.5 | ≤86 | -5~45° | 0~350° | Single water ring 120 | 31 | ≤90 | 2850 | |
Please feel free to submit your inquiry information to us. We will contact with you as soon as possible.
