100 Meters Sprinkler Truck Mist Cannon Machine for Road maintenance Dust Suppression― $6,100.00 CE

Mist cannon machine for 100m sprinklers sprays 100m, with 20-150μm droplets for efficient dust suppression, 360 rotation, smart control, and multi-functional environmental use.

Calm range：100mM Color：Customizable Rotation angle：0-340°

[email protected]+8613907311223

Share With:

Home / Goods

Description
Parameter
Related Products
Inquiry

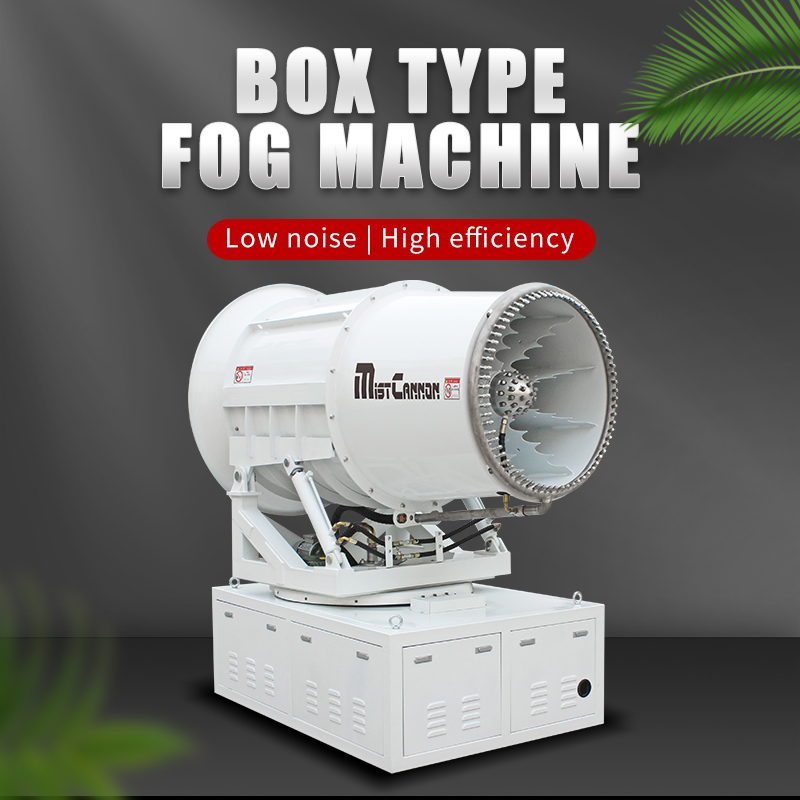

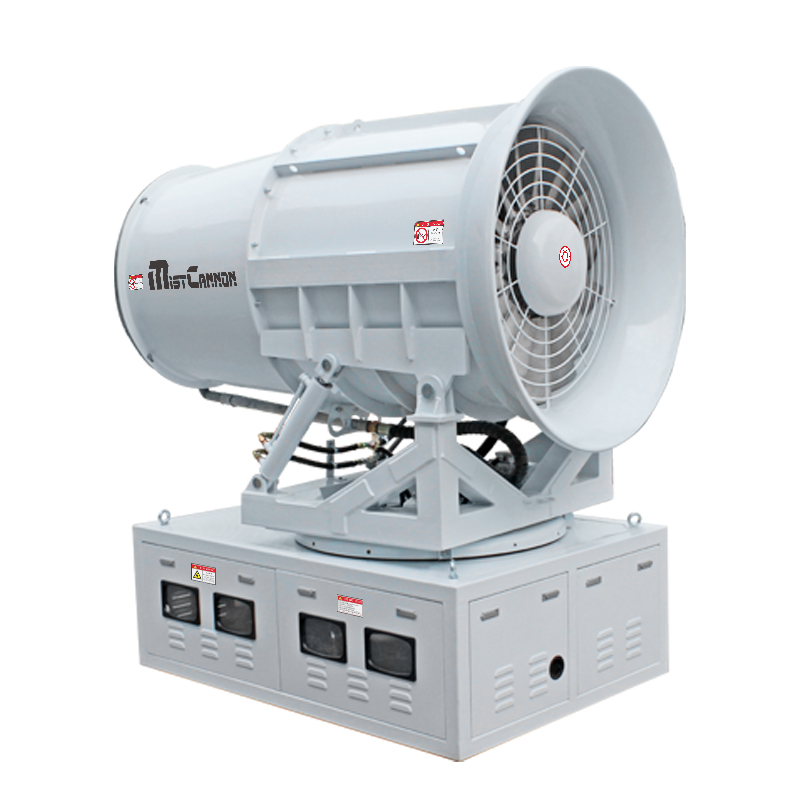

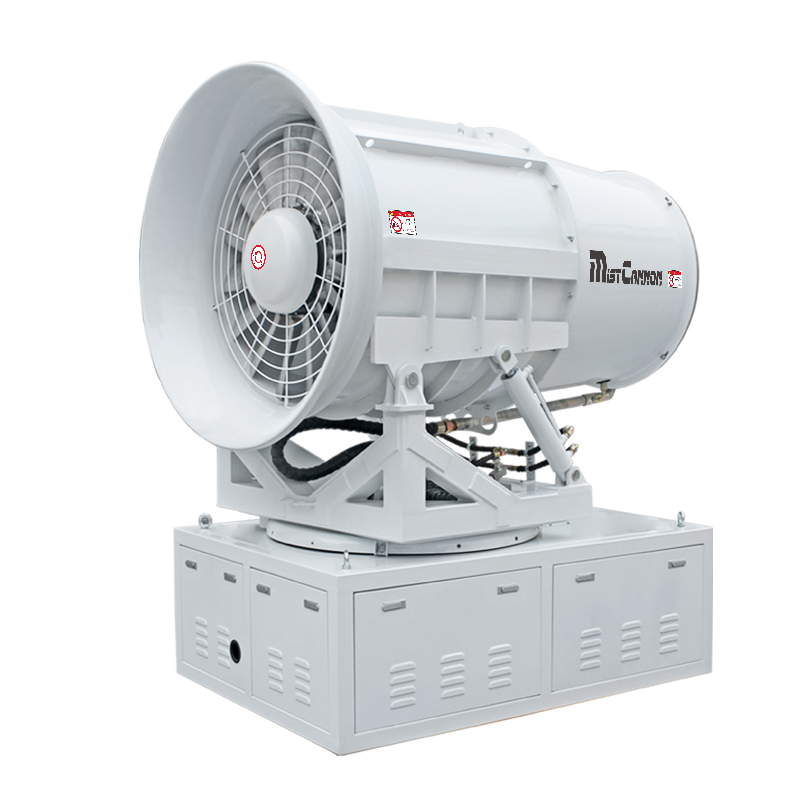

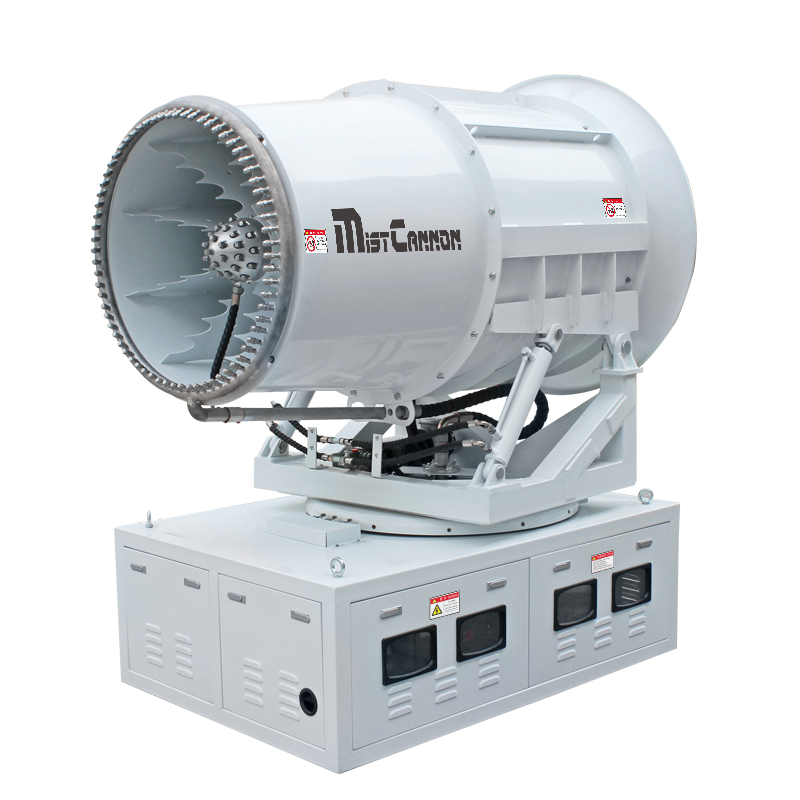

100 Meters Sprinkler Truck Mist Cannon Machine for Road maintenance Dust Suppression

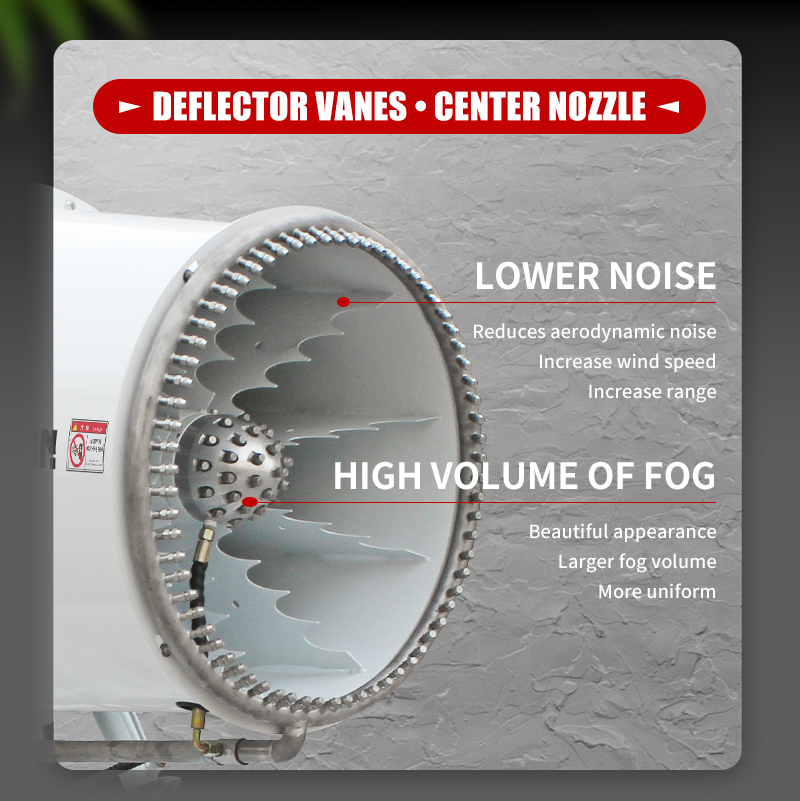

The mist cannon machine supporting 100-meter sprinkler trucks, relying on high-power fans and high-pressure water pumps, can spray water mist up to 100 meters away. The atomized water droplets are as small as 20-150 microns, which can efficiently adsorb dust and pollutants in the air for rapid sedimentation and purification. With the functions of 360° horizontal rotation and -10° to +60° vertical adjustment, the equipment can comprehensively cover construction sites, roads and other areas. It also supports intelligent control, which can automatically adjust the spray volume and pressure according to environmental monitoring data. While achieving strong dust reduction, it can also be used in scenarios such as road cooling and disinfection, significantly enhancing the versatility and environmental protection efficiency of sprinkler truck operations.

Description

MODEl	Static wind range (m)	Fan power (Kw)	Pump power (Kw)	Total power (Kw)	Pitch angle		Rotation angle	sprinkler		Noise at 20 meters (dB)	Weight(kg)
MODEl	Static wind range (m)	Fan power (Kw)	Pump power (Kw)	Total power (Kw)	Split	bax	Rotation angle	Standard	certer nozzle	Noise at 20 meters (dB)	Weight(kg)
ZT-20	20~25	1.5	1.1	≤3	-5~35°	-5~40°	0~350°	Single water ring 12	11	≤60	260
ZT-30	25~35	2.2	1.5	≤5	-5~35°	-5~40°	0~350°	Single water ring 12	11	≤65	290
ZT-35	35~40	3	2.2	≤6	-5~35°	-5~40°	0~350°	Single water ring 12	11	≤65	330
ZT-40	40~50	7.5	3	≤13	-5~35°	-5~40°	0~350°	Single water ring 24	15	≤68	440
ZT-50	55~60	11	3	≤16	-5~35°	-5~40°	0~350°	Single water ring 24	15	≤68	530
ZT-60	60~70	15	4	≤21	-5~35°	-5~40°	0~350°	Single water ring 30	15	≤75	640
ZT-70	70~80	22	5.5	≤30	-5~35°	-5~40°	0~350°	Single water ring 36	31	≤75	850
ZT-80	75~85	30	5.5	≤37	-5~35°	-5~40°	0~350°	Single water ring 46	31	≤75	960
ZT-90	80~90	37	7.5	≤46	-5~35°	-5~40°	0~350°	Single water ring 70	31	≤80	1580

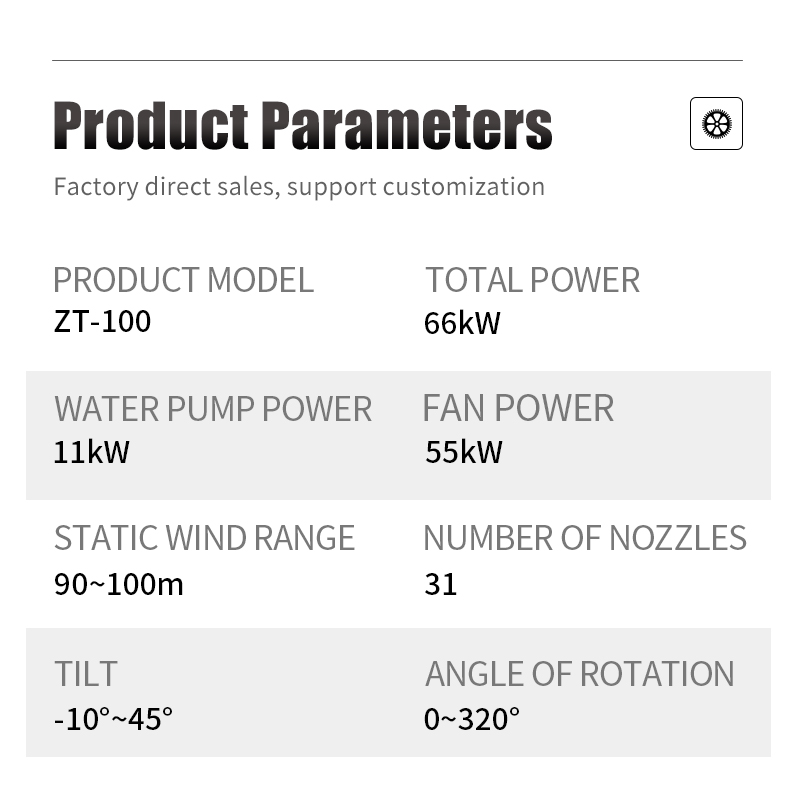

ZT-100	90~100	45	7.5	≤55	-5~45°	-5~45°	0~350°	Single water ring 70	31	≤80	1610
ZT-110	100~110	55	11	≤68	-5~45°		0~350°	Single water ring 100	31	≤80	1850
ZT-120	100~120	75	15	≤92	-5~45°		0~350°	Single water ring 110	31	≤85	2350
ZT-130	110~140	75	18.5	≤86	-5~45°		0~350°	Single water ring 120	31	≤90	2850
