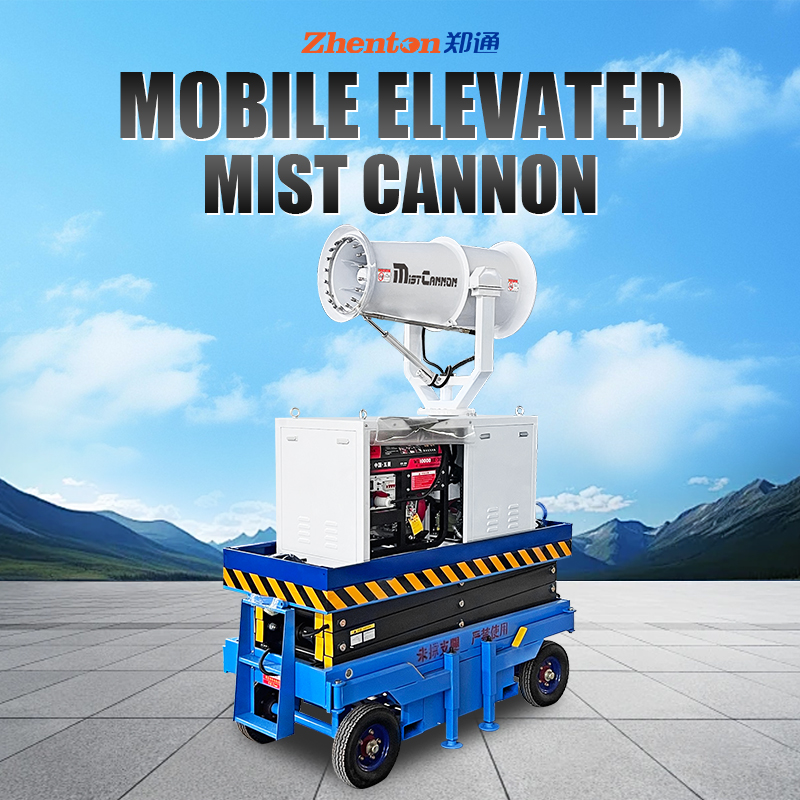

30m Mist Cannon Machine for Dust Control in Wastewater Evaporation― $1,200.00 CE

ZT-30 fog cannon machine: 8kW total power (3kW pump, 5kW fan). 25 - 30m range, 18 nozzles, flexible angles. With lifting platform, aids dust control.

Calm range：30mM Color：white(customizable) Rotation angle：0-320°

[email protected]+8613907311223

Share With:

Home / Goods

Description
Parameter
Related Products
Inquiry

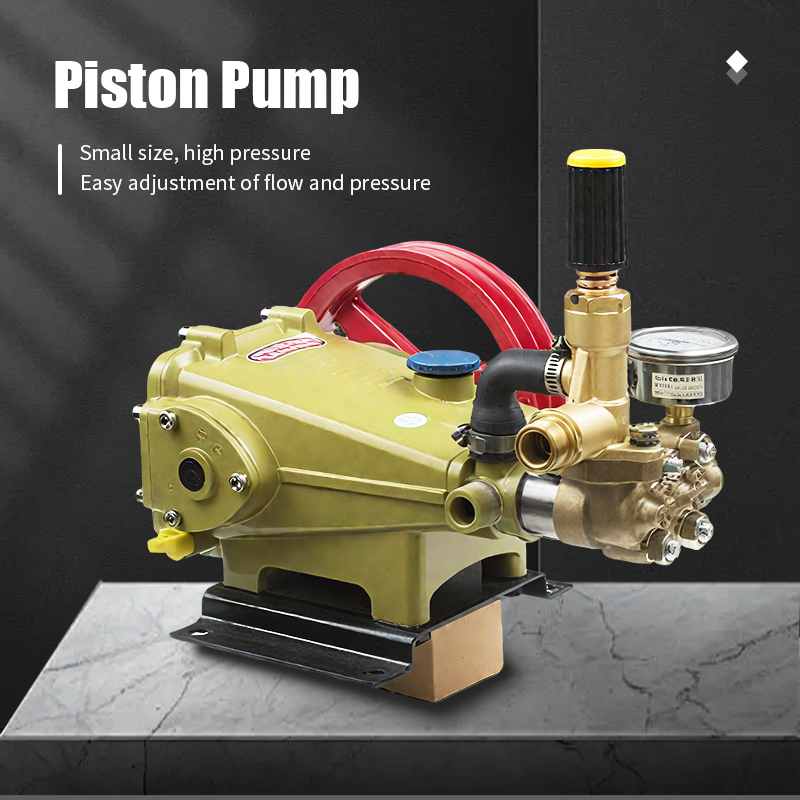

This ZT-30 fog cannon machine, boasting a total power of 8kW (3kW for the water pump and 5kW for the fan), is a powerful tool for dust suppression. With a still-air range of 25-30 meters and 18 nozzles, it can effectively cover a large area. The elevation angle of -5° to 35° and rotation angle of 0° to 320° allow for flexible spraying direction adjustment.

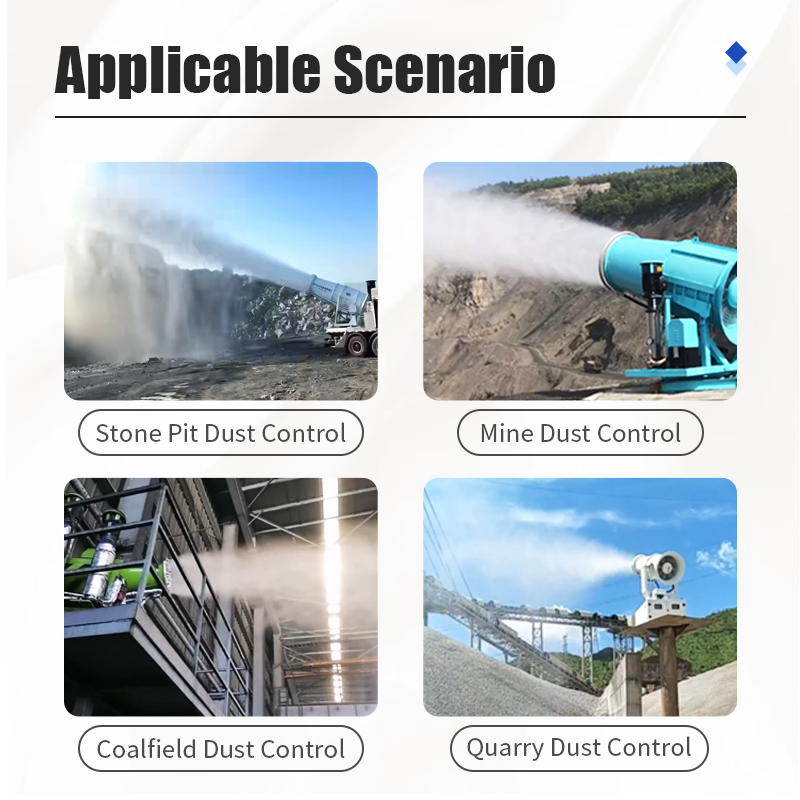

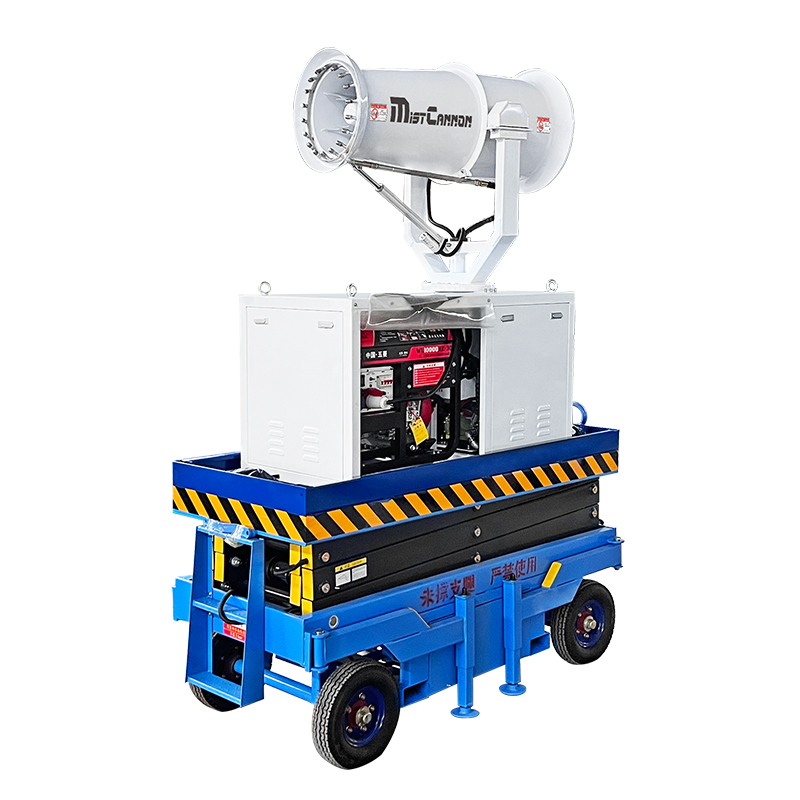

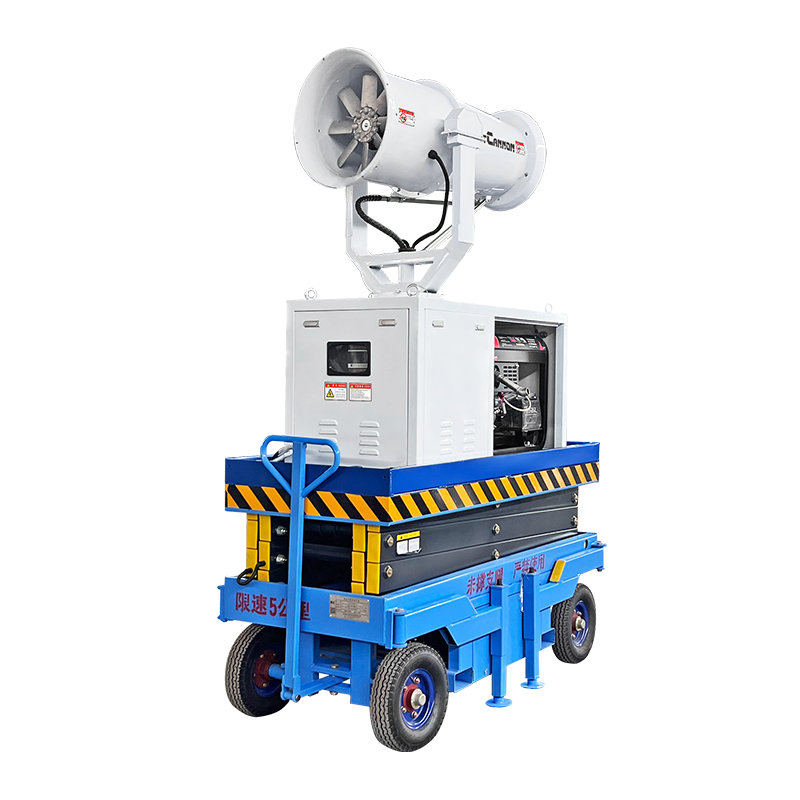

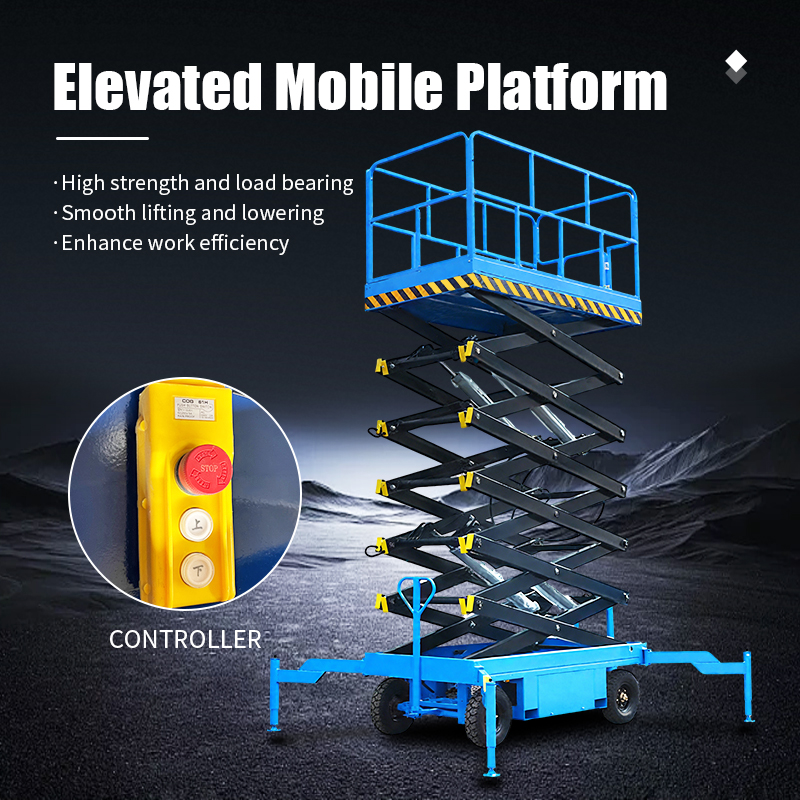

Equipped with a lifting platform, it adds more operational flexibility, enabling easy adaptation to different height requirements. Whether in construction sites or industrial areas, this machine, with its precise parameters and practical design, plays a crucial role in improving air quality and controlling dust pollution.

30m Mist Cannon Machine for Dust Control in Wastewater Evaporation

Description

MODEl	Static wind range (m)	Fan power (Kw)	Pump power (Kw)	Total power (Kw)	Pitch angle		Rotation angle	sprinkler		Noise at 20 meters (dB)	Weight(kg)
MODEl	Static wind range (m)	Fan power (Kw)	Pump power (Kw)	Total power (Kw)	Split	bax	Rotation angle	Standard	certer nozzle	Noise at 20 meters (dB)	Weight(kg)
ZT-20	20~25	1.5	1.1	≤3	-5~35°	-5~40°	0~350°	Single water ring 12	11	≤60	260
ZT-30	25~35	2.2	1.5	≤5	-5~35°	-5~40°	0~350°	Single water ring 12	11	≤65	290
ZT-35	35~40	3	2.2	≤6	-5~35°	-5~40°	0~350°	Single water ring 12	11	≤65	330
ZT-40	40~50	7.5	3	≤13	-5~35°	-5~40°	0~350°	Single water ring 24	15	≤68	440
ZT-50	55~60	11	3	≤16	-5~35°	-5~40°	0~350°	Single water ring 24	15	≤68	530
ZT-60	60~70	15	4	≤21	-5~35°	-5~40°	0~350°	Single water ring 30	15	≤75	640
ZT-70	70~80	22	5.5	≤30	-5~35°	-5~40°	0~350°	Single water ring 36	31	≤75	850
ZT-80	75~85	30	5.5	≤37	-5~35°	-5~40°	0~350°	Single water ring 46	31	≤75	960
ZT-90	80~90	37	7.5	≤46	-5~35°	-5~40°	0~350°	Single water ring 70	31	≤80	1580
ZT-100	90~100	45	7.5	≤55	-5~45°	-5~45°	0~350°	Single water ring 70	31	≤80	1610
ZT-110	100~110	55	11	≤68	-5~45°		0~350°	Single water ring 100	31	≤80	1850
ZT-120	100~120	75	15	≤92	-5~45°		0~350°	Single water ring 110	31	≤85	2350
ZT-130	110~140	75	18.5	≤86	-5~45°		0~350°	Single water ring 120	31	≤90	2850
