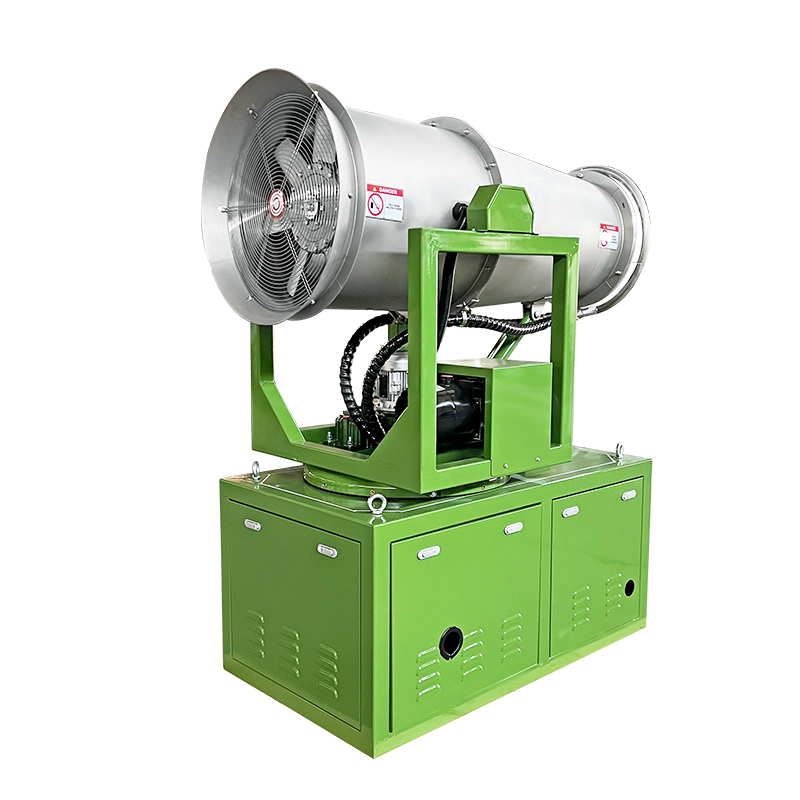

A 40m box-type mist cannon machine for large-area spraying: long-range, fine atomization, suitable for orchards and construction sites, efficient and easy to use.
Calm range：40mM Color：Customizable Rotation angle：0-340°
The 40 - meter box - type mist cannon machine is designed for large - area spraying operations. With a medicine - storing box, it can spray up to 40 meters, covering a wide range. Its fine and uniform atomization can penetrate into the gaps of branches and leaves. Suitable for orchard spraying, construction site dust suppression and other scenarios, it is efficient, medicine - saving and easy to operate, effectively improving work efficiency and reducing labor costs.
Description
| MODEl |
Static wind range (m) |
Fan power (Kw) |
Pump power (Kw) |
Total power (Kw) |
Pitch angle | Rotation angle | sprinkler |
Noise at 20 meters (dB) |
Weight(kg) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Split | bax | Standard | certer nozzle | ||||||||
| ZT-20 | 20~25 | 1.5 | 1.1 | ≤3 | -5~35° | -5~40° | 0~350° | Single water ring 12 | 11 | ≤60 | 260 |
| ZT-30 | 25~35 | 2.2 | 1.5 | ≤5 | -5~35° | -5~40° | 0~350° | Single water ring 12 | 11 | ≤65 | 290 |
| ZT-35 | 35~40 | 3 | 2.2 | ≤6 | -5~35° | -5~40° | 0~350° | Single water ring 12 | 11 | ≤65 | 330 |
| ZT-40 | 40~50 | 7.5 | 3 | ≤13 | -5~35° | -5~40° | 0~350° | Single water ring 24 | 15 | ≤68 | 440 |
| ZT-50 | 55~60 | 11 | 3 | ≤16 | -5~35° | -5~40° | 0~350° | Single water ring 24 | 15 | ≤68 | 530 |
| ZT-60 | 60~70 | 15 | 4 | ≤21 | -5~35° | -5~40° | 0~350° | Single water ring 30 | 15 | ≤75 | 640 |
| ZT-70 | 70~80 | 22 | 5.5 | ≤30 | -5~35° | -5~40° | 0~350° | Single water ring 36 | 31 | ≤75 | 850 |
| ZT-80 | 75~85 | 30 | 5.5 | ≤37 | -5~35° | -5~40° | 0~350° | Single water ring 46 | 31 | ≤75 | 960 |
| ZT-90 | 80~90 | 37 | 7.5 | ≤46 | -5~35° | -5~40° | 0~350° | Single water ring 70 | 31 | ≤80 | 1580 |
| ZT-100 | 90~100 | 45 | 7.5 | ≤55 | -5~45° | -5~45° | 0~350° | Single water ring 70 | 31 | ≤80 | 1610 |
| ZT-110 | 100~110 | 55 | 11 | ≤68 | -5~45° | 0~350° | Single water ring 100 | 31 | ≤80 | 1850 | |
| ZT-120 | 100~120 | 75 | 15 | ≤92 | -5~45° | 0~350° | Single water ring 110 | 31 | ≤85 | 2350 | |
| ZT-130 | 110~140 | 75 | 18.5 | ≤86 | -5~45° | 0~350° | Single water ring 120 | 31 | ≤90 | 2850 | |
