Dust control machine ZT-70

Zhenton fog cannons have a long range and can suppress dust by producing a column of mist that leaves the cannon at high speed and that can reach a range of 70 meters.

Calm range:70mM Color:Customizable Rotation angle:0-340°

Share With:

Youtube Facebook Instagram Twitter

Product description:

The main purpose of the fog cannon machine is to reduce dust. The device sprays tiny mist particles with a diameter similar to that of the dust and directly contacts the dust in the air, so that the dust is wet and condenses with the surrounding dust through adsorption. The effect of gravity makes the dust sink, so as to achieve the effect of dust suppression.

Product features:

Uniform atomization, wide coverage, fine atomized particles, intelligent control mode, stable operation, safe and reliable use.

It is movable, loadable, fixable, and highly adaptable, which can accelerate dust settlement and inhibit dust diffusion.

MODEl Static wind
range (m)
Fan power
(Kw)
Pump power
(Kw)
Total power
(Kw)
Pitch angle Rotation angle sprinkler Noise at 20
meters (dB)
Weight(kg)
Split bax Standard certer nozzle

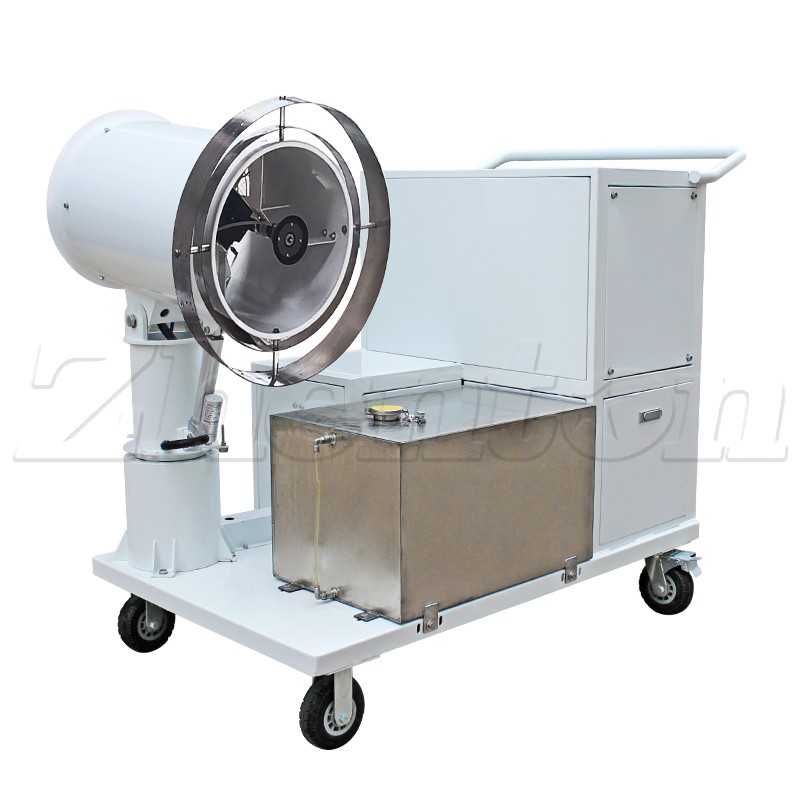

ZT-20 20~25 1.5 1.1 ≤3 -5~35° -5~40° 0~350° Single water ring 12 11 ≤60 260
ZT-30 25~35 2.2 1.5 ≤5 -5~35° -5~40° 0~350° Single water ring 12 11 ≤65 290
ZT-35 35~40 3 2.2 ≤6 -5~35° -5~40° 0~350° Single water ring 12 11 ≤65 330
ZT-40 40~50 7.5 3 ≤13 -5~35° -5~40° 0~350° Single water ring 24 15 ≤68 440
ZT-50 55~60 11 3 ≤16 -5~35° -5~40° 0~350° Single water ring 24 15 ≤68 530
ZT-60 60~70 15 4 ≤21 -5~35° -5~40° 0~350° Single water ring 30 15 ≤75 640
ZT-70 70~80 22 5.5 ≤30 -5~35° -5~40° 0~350° Single water ring 36 31 ≤75 850
ZT-80 75~85 30 5.5 ≤37 -5~35° -5~40° 0~350° Single water ring 46 31 ≤75 960
ZT-90 80~90 37 7.5 ≤46 -5~35° -5~40° 0~350° Single water ring 70 31 ≤80 1580
ZT-100 90~100 45 7.5 ≤55 -5~45° -5~45° 0~350° Single water ring 70 31 ≤80 1610
ZT-110 100~110 55 11 ≤68 -5~45° 0~350° Single water ring 100 31 ≤80 1850
ZT-120 100~120 75 15 ≤92 -5~45° 0~350° Single water ring 110 31 ≤85 2350
ZT-130 110~140 75 18.5 ≤86 -5~45° 0~350° Single water ring 120 31 ≤90 2850
