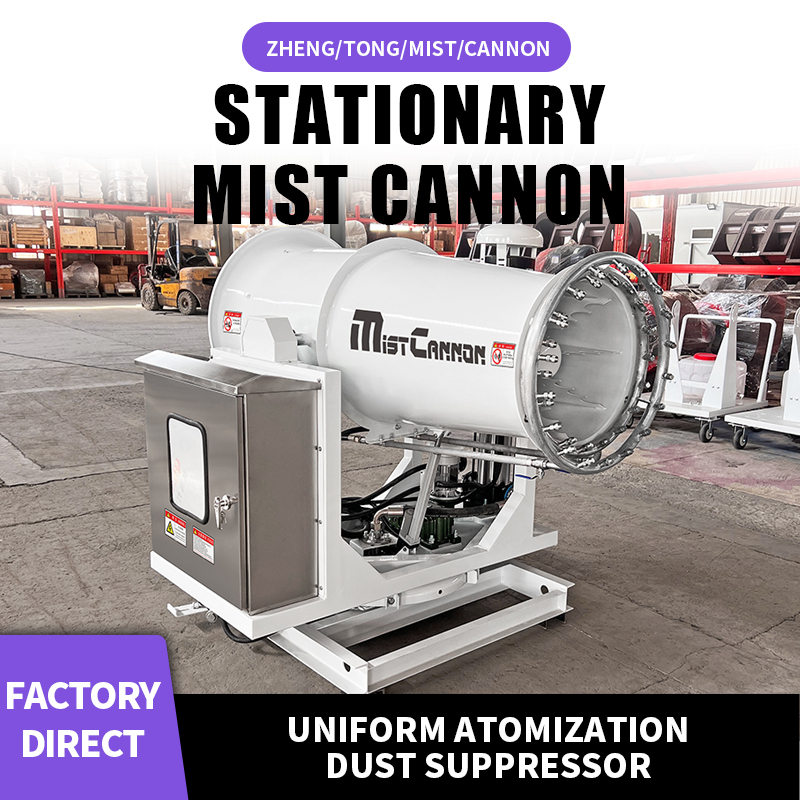

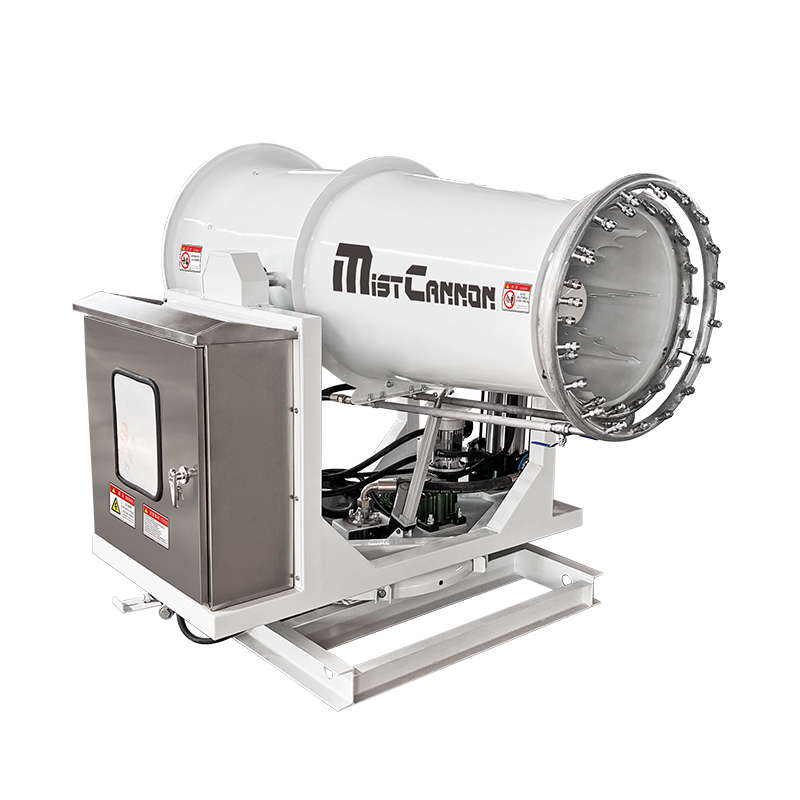

Dust Suppression 40 m Fog Water Mist Cannon in Demolition Work,Coalfields― $3,000.00 CE

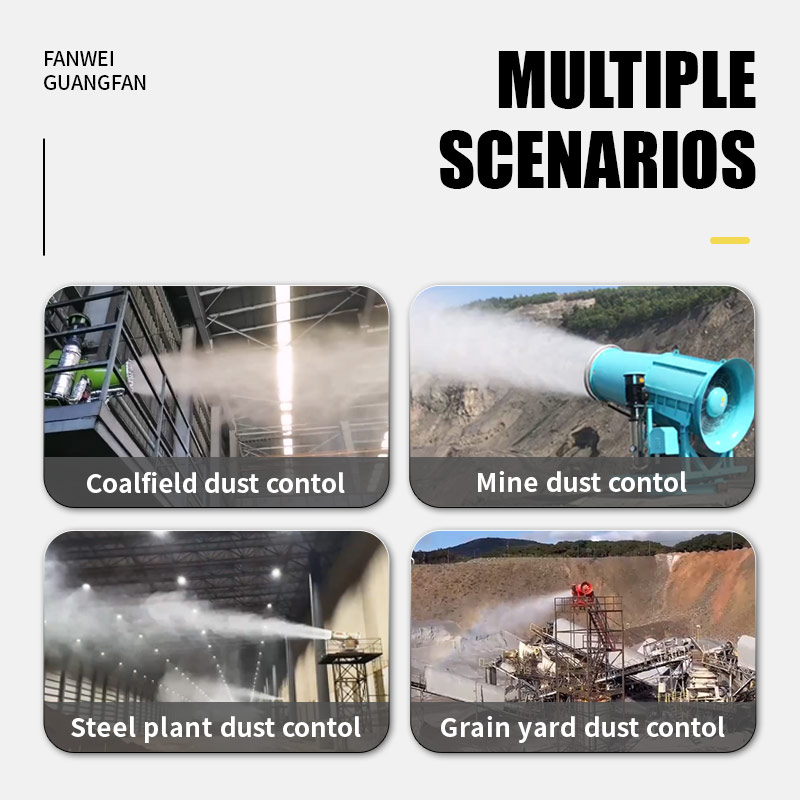

The fog cannon machine suits construction sites, quarries, material yards, ideal for dust - heavy areas needing air cleaning and dust suppression.

Calm range：40mM Color：white Rotation angle：0-340°

[email protected]+8613907311223

Share With:

Home / Goods

Description
Parameter
Related Products
Inquiry

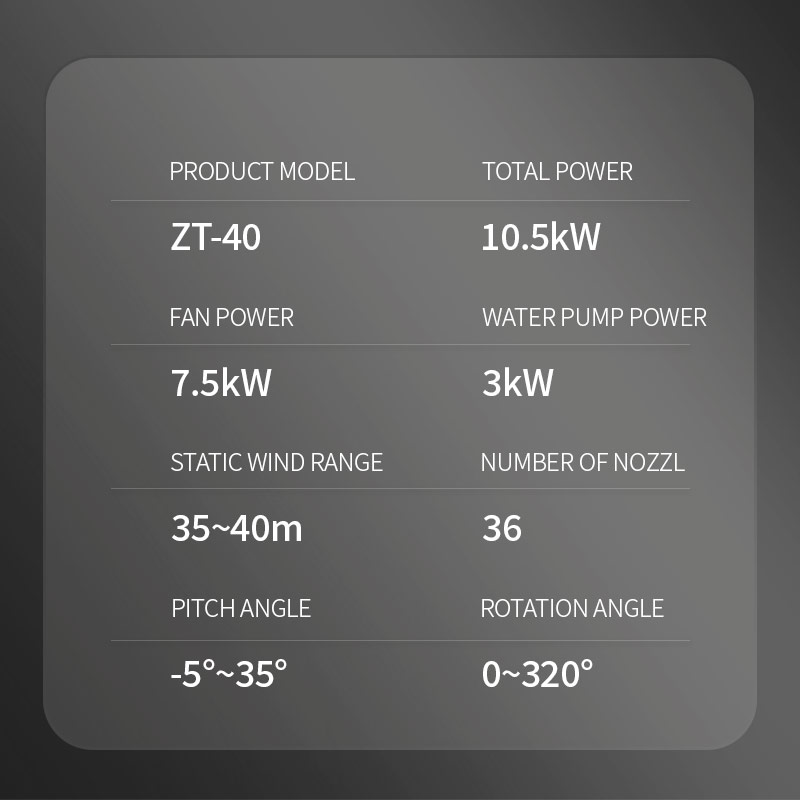

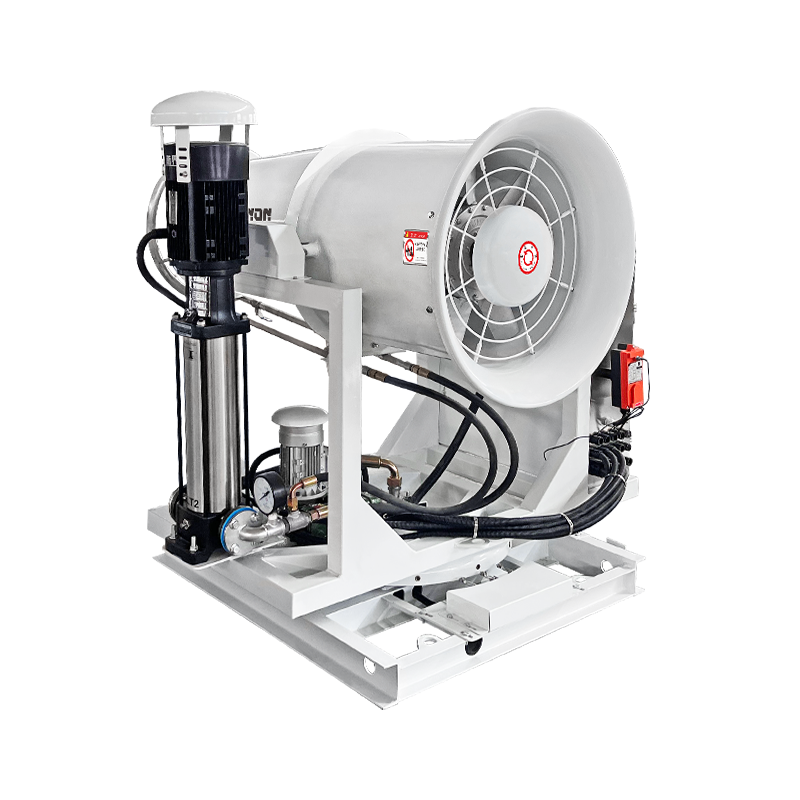

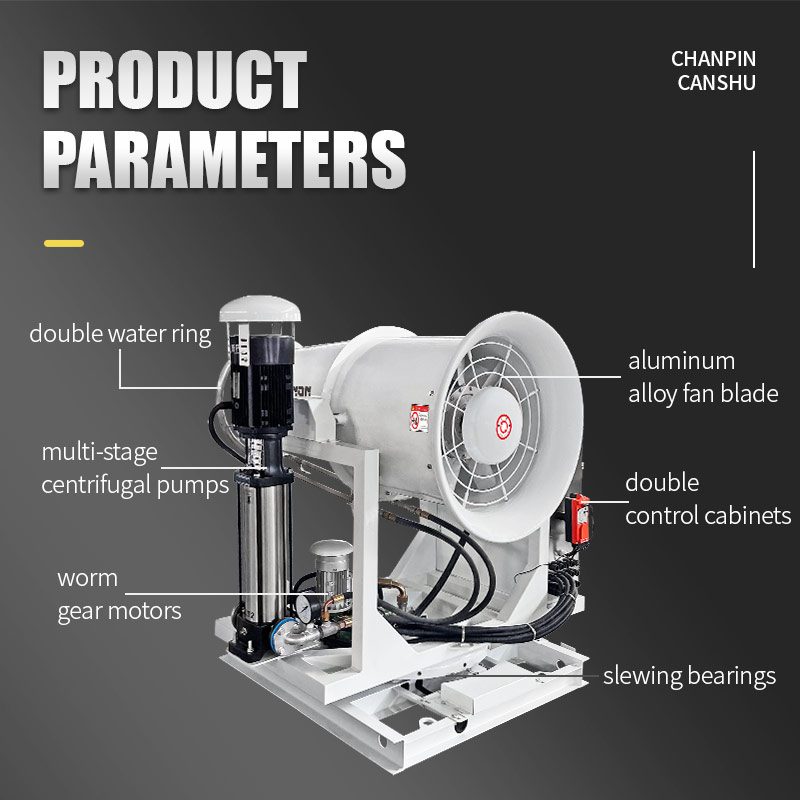

The ZT-40 split - type fog cannon machine has a total power of 10.5kW, with a 7.5kW fan and a 3kW water pump working in coordination. Its static wind range covers 35 - 40m, and it is equipped with 36 nozzles. The pitch angle can be flexibly adjusted from -5° to 35°, and the rotation angle can cover 0° to 320°. Through precise spraying, it can effectively reduce dust and suppress dust, and is suitable for various scenarios requiring air purification and dust control, helping to create a clean environment.

主图.jpg 主图_02.jpg 主图_04.jpg 主图_03.jpg 主图_07.jpg 主图_08.jpg 主图_06.jpg 主图_10.jpg 主图_09.jpg

Description

MODEl	Static wind range (m)	Fan power (Kw)	Pump power (Kw)	Total power (Kw)	Pitch angle		Rotation angle	sprinkler		Noise at 20 meters (dB)	Weight(kg)
MODEl	Static wind range (m)	Fan power (Kw)	Pump power (Kw)	Total power (Kw)	Split	bax	Rotation angle	Standard	certer nozzle	Noise at 20 meters (dB)	Weight(kg)
ZT-20	20~25	1.5	1.1	≤3	-5~35°	-5~40°	0~350°	Single water ring 12	11	≤60	260
ZT-30	25~35	2.2	1.5	≤5	-5~35°	-5~40°	0~350°	Single water ring 12	11	≤65	290
ZT-35	35~40	3	2.2	≤6	-5~35°	-5~40°	0~350°	Single water ring 12	11	≤65	330
ZT-40	40~50	7.5	3	≤13	-5~35°	-5~40°	0~350°	Single water ring 24	15	≤68	440
ZT-50	55~60	11	3	≤16	-5~35°	-5~40°	0~350°	Single water ring 24	15	≤68	530
ZT-60	60~70	15	4	≤21	-5~35°	-5~40°	0~350°	Single water ring 30	15	≤75	640
ZT-70	70~80	22	5.5	≤30	-5~35°	-5~40°	0~350°	Single water ring 36	31	≤75	850
ZT-80	75~85	30	5.5	≤37	-5~35°	-5~40°	0~350°	Single water ring 46	31	≤75	960
ZT-90	80~90	37	7.5	≤46	-5~35°	-5~40°	0~350°	Single water ring 70	31	≤80	1580
ZT-100	90~100	45	7.5	≤55	-5~45°	-5~45°	0~350°	Single water ring 70	31	≤80	1610
ZT-110	100~110	55	11	≤68	-5~45°		0~350°	Single water ring 100	31	≤80	1850
ZT-120	100~120	75	15	≤92	-5~45°		0~350°	Single water ring 110	31	≤85	2350
ZT-130	110~140	75	18.5	≤86	-5~45°		0~350°	Single water ring 120	31	≤90	2850
