Dust Control 40m Mist Cannon Machine for Mine and Coal― $5,100.00 CE

A 40m fixed mist cannon machine sprays 40m, atomizes water via high pressure for dust suppression/cooling in mines/sites, runs stably, automates via smart control, efficient & easy-maintained.

Calm range：40mM Color：Blue Rotation angle：0-340°

[email protected]+8613907311223

Share With:

Home / Goods

Description
Parameter
Related Products
Inquiry

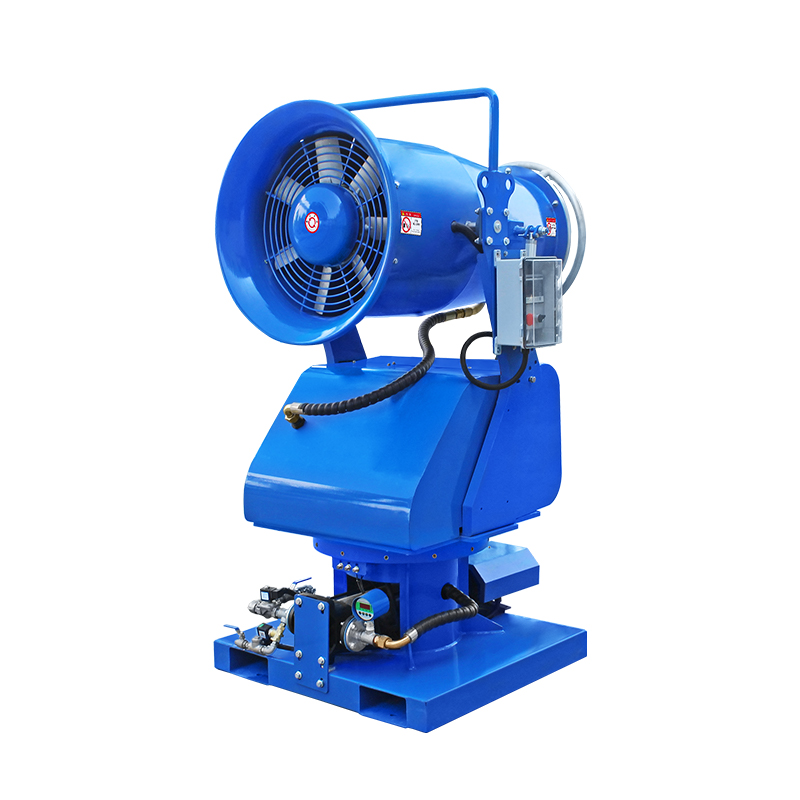

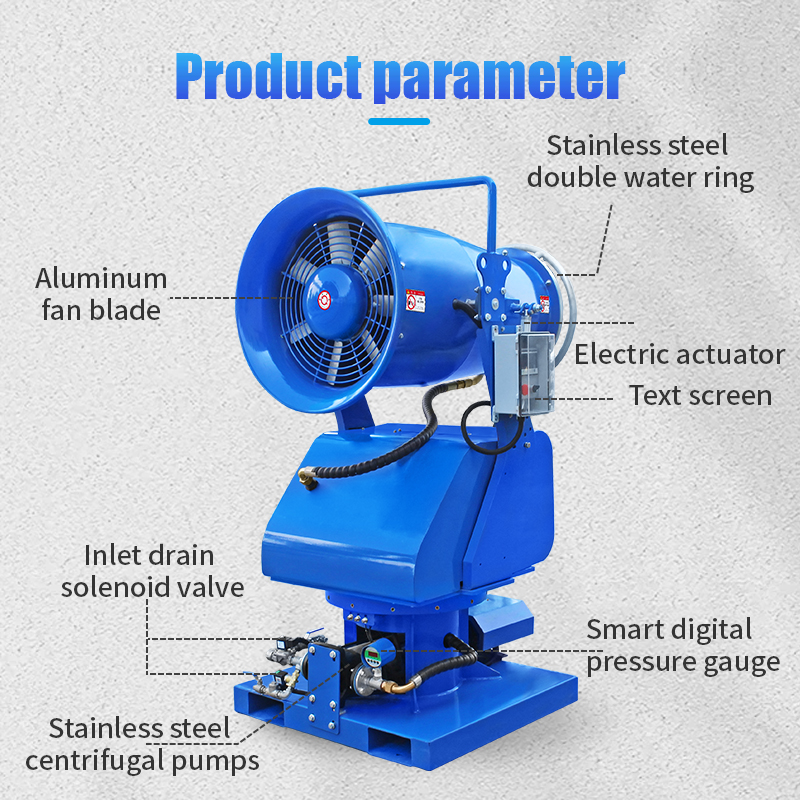

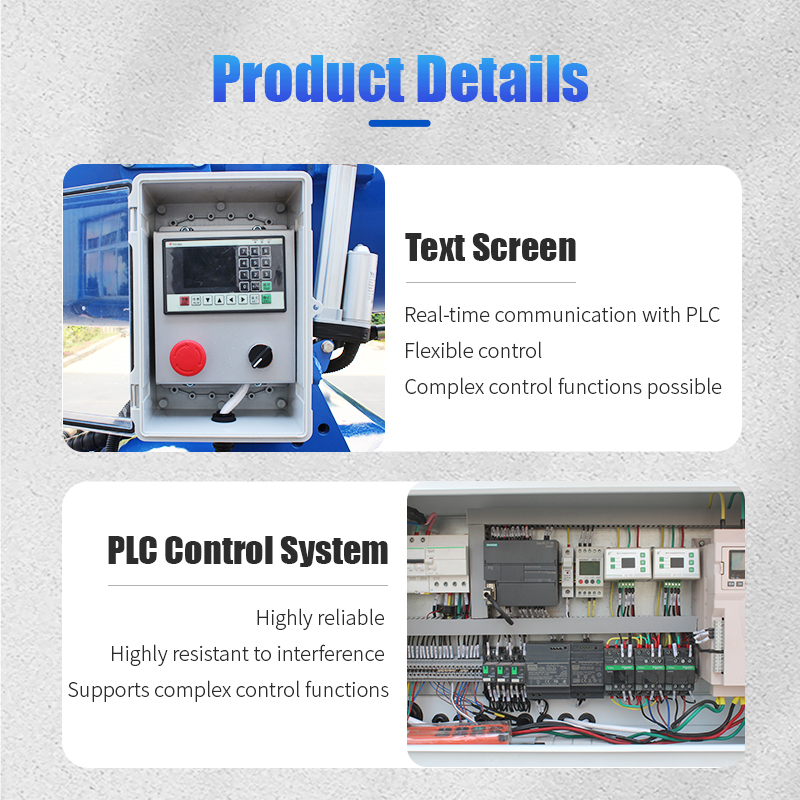

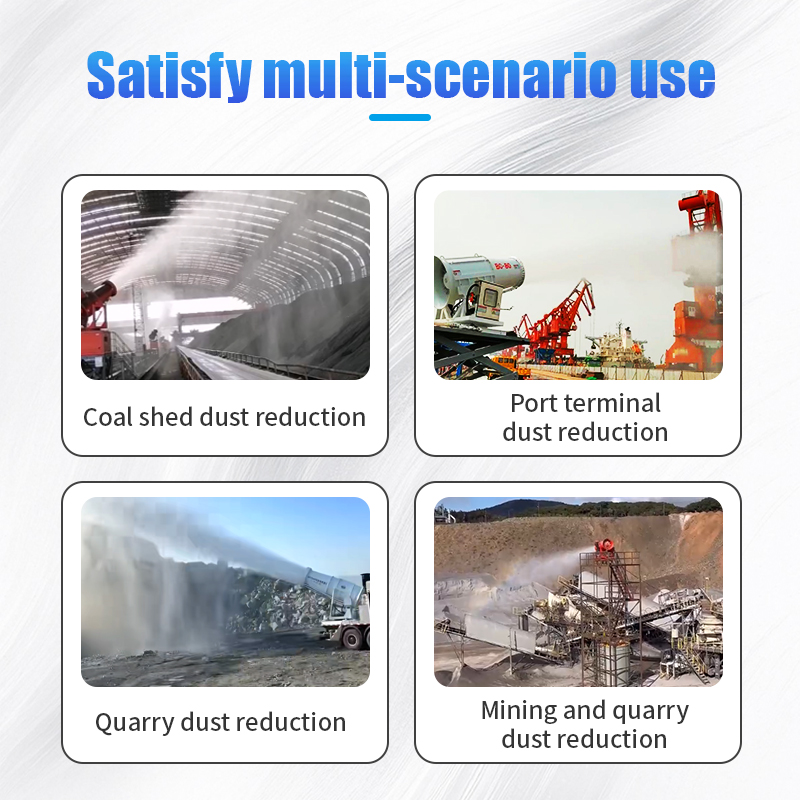

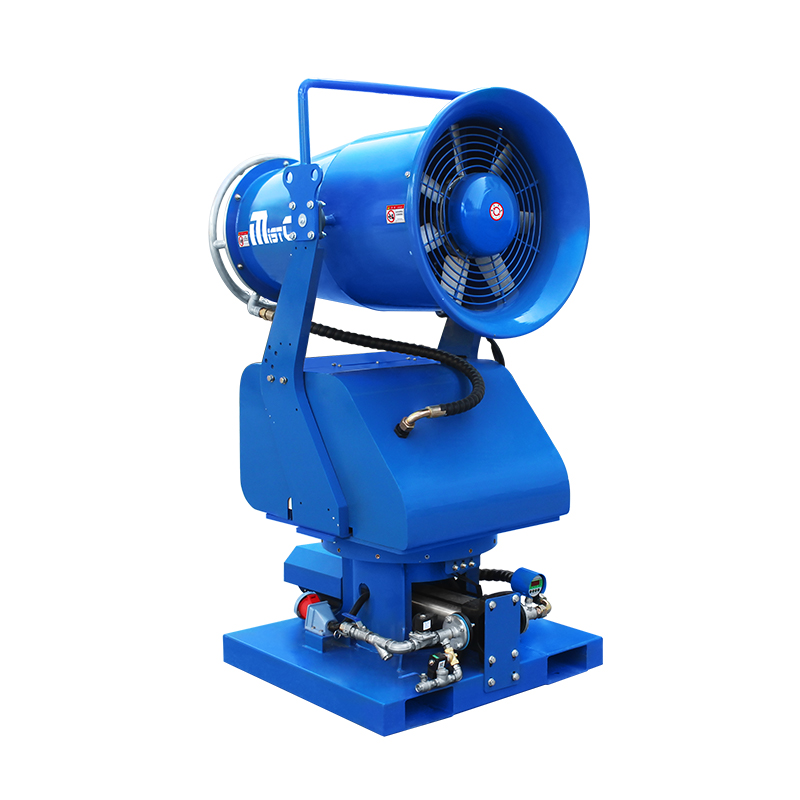

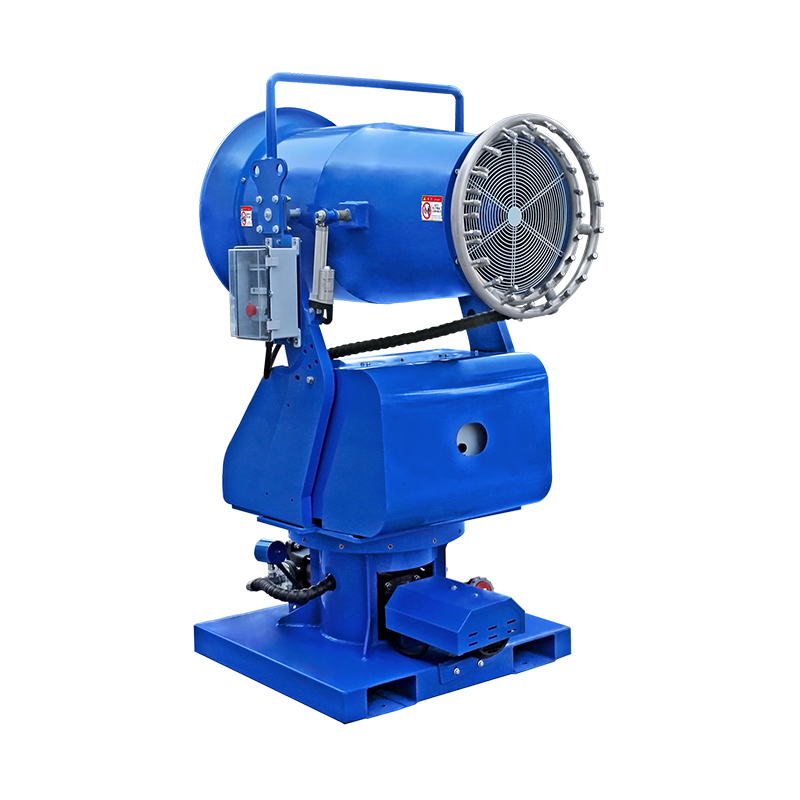

The 40-meter fixed mist cannon machine is a dust suppression and cooling equipment fixed in a specific position. With a maximum spraying range of 40 meters, it atomizes water into fine particles through high pressure, effectively covering large operational areas. Suitable for dust control in mines, construction sites, storage yards, and summer cooling, this equipment requires no mobility and ensures long-term stable operation after installation. Equipped with an intelligent control system, it enables automated spraying, featuring long range, wide coverage, low energy consumption, and easy maintenance. It allows adjustment of spraying angles and flow rates according to actual needs, playing an important role in environmental dust suppression and climate regulation.

切图_02.jpg 切图_06.jpg 切图_07.jpg 切图_03.jpg 切图_04.jpg 切图_08.jpg 切图_05.jpg

Description

MODEl	Static wind range (m)	Fan power (Kw)	Pump power (Kw)	Total power (Kw)	Pitch angle		Rotation angle	sprinkler		Noise at 20 meters (dB)	Weight(kg)
MODEl	Static wind range (m)	Fan power (Kw)	Pump power (Kw)	Total power (Kw)	Split	bax	Rotation angle	Standard	certer nozzle	Noise at 20 meters (dB)	Weight(kg)
ZT-20	20~25	1.5	1.1	≤3	-5~35°	-5~40°	0~350°	Single water ring 12	11	≤60	260
ZT-30	25~35	2.2	1.5	≤5	-5~35°	-5~40°	0~350°	Single water ring 12	11	≤65	290
ZT-35	35~40	3	2.2	≤6	-5~35°	-5~40°	0~350°	Single water ring 12	11	≤65	330

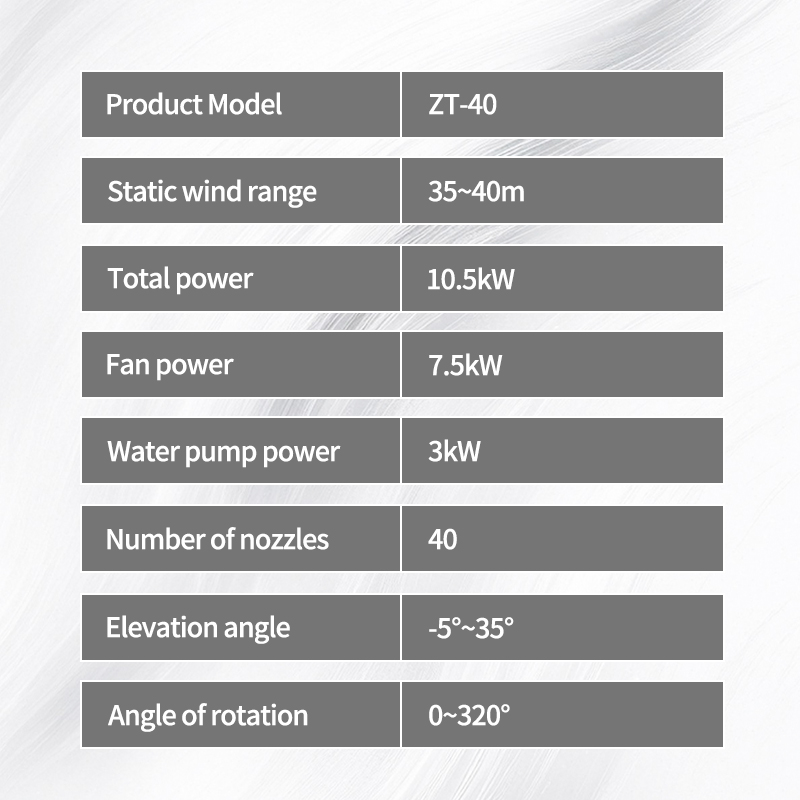

ZT-40	40~50	7.5	3	≤13	-5~35°	-5~40°	0~350°	Single water ring 24	15	≤68	440
ZT-50	55~60	11	3	≤16	-5~35°	-5~40°	0~350°	Single water ring 24	15	≤68	530
ZT-60	60~70	15	4	≤21	-5~35°	-5~40°	0~350°	Single water ring 30	15	≤75	640
ZT-70	70~80	22	5.5	≤30	-5~35°	-5~40°	0~350°	Single water ring 36	31	≤75	850
ZT-80	75~85	30	5.5	≤37	-5~35°	-5~40°	0~350°	Single water ring 46	31	≤75	960
ZT-90	80~90	37	7.5	≤46	-5~35°	-5~40°	0~350°	Single water ring 70	31	≤80	1580
ZT-100	90~100	45	7.5	≤55	-5~45°	-5~45°	0~350°	Single water ring 70	31	≤80	1610
ZT-110	100~110	55	11	≤68	-5~45°		0~350°	Single water ring 100	31	≤80	1850
ZT-120	100~120	75	15	≤92	-5~45°		0~350°	Single water ring 110	31	≤85	2350
ZT-130	110~140	75	18.5	≤86	-5~45°		0~350°	Single water ring 120	31	≤90	2850
