Dust Suppression System 60m Fog Cannon Machine in Material Yards― $2,900.00 CE

The ZT-60 four - wheel trailer mobile fog cannon machine by ZHNETONG has a 22.5kW total power (4kW pump, 18.5kW fan). It sprays 55 - 60m, has 50 nozzles, flexible angles, aids dust suppression.

Calm range：60mM Color：Red Rotation angle：0-320°

[email protected]+8613907311223

Share With:

Home / Goods

Description
Parameter
Related Products
Inquiry

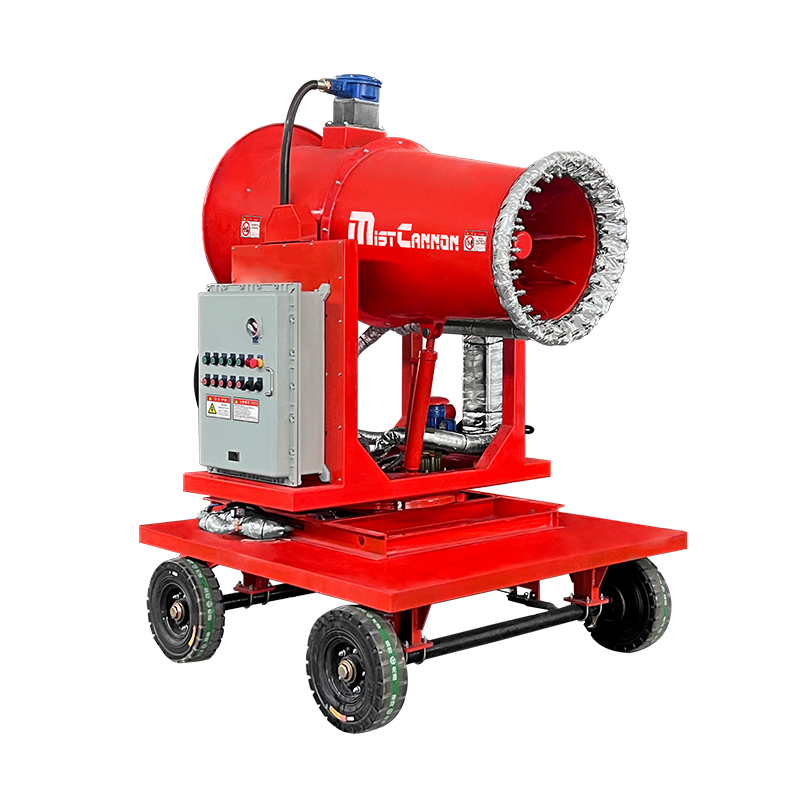

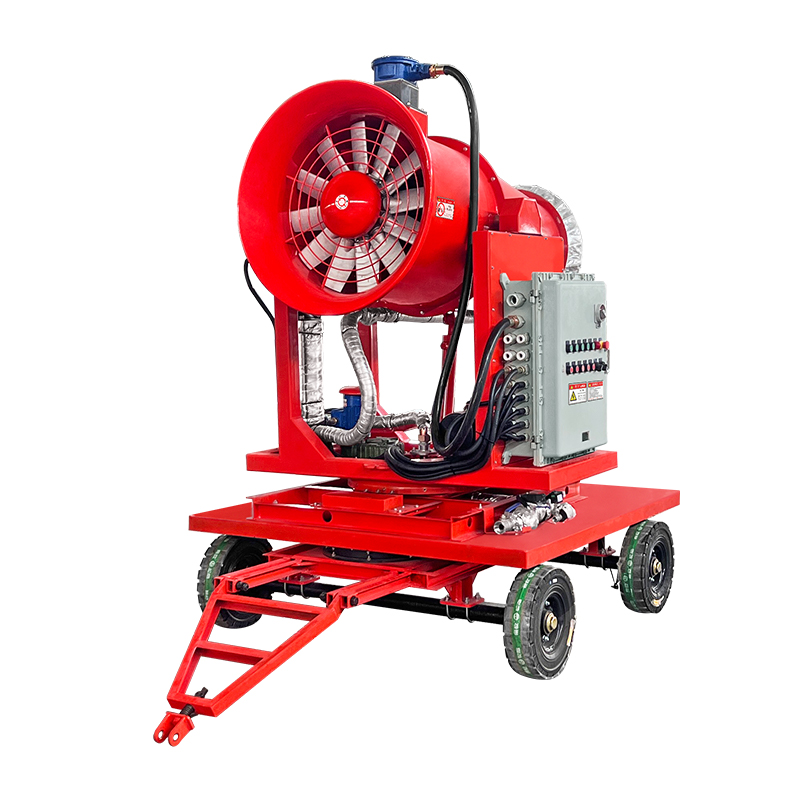

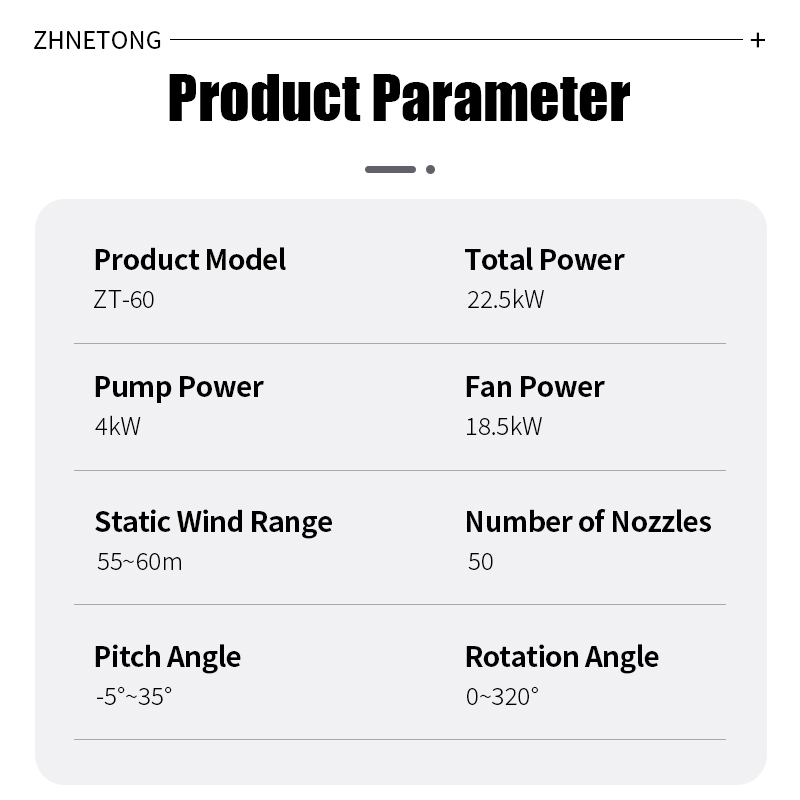

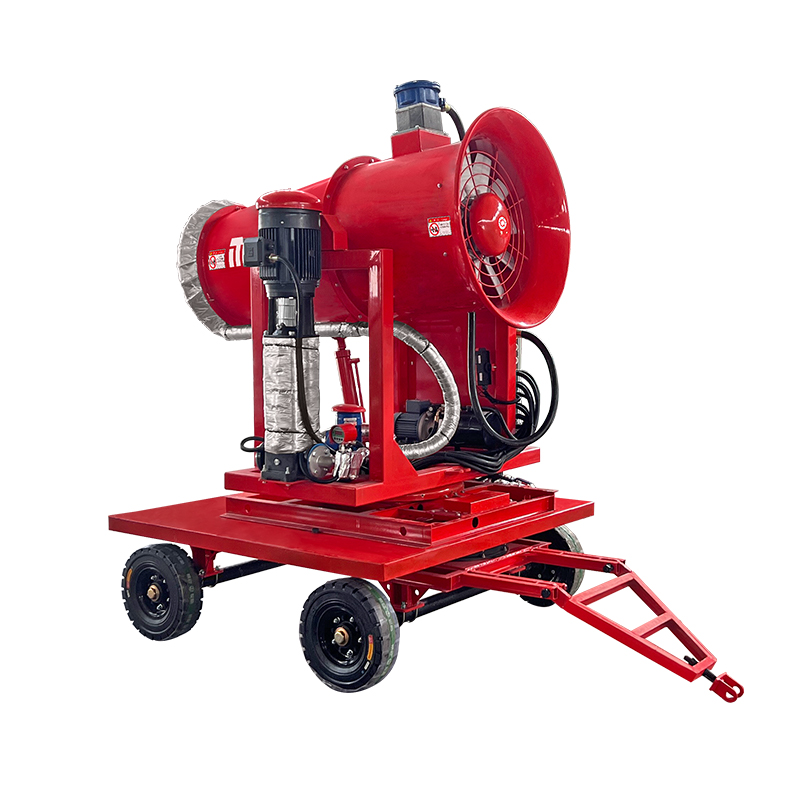

The ZT-60 four-wheel trailer mobile fog cannon machine, a product of ZHNETONG, delivers excellent performance. With a total power of 22.5kW (including a 4kW water pump and an 18.5kW fan), it offers strong power. It can reach a still-air spraying distance of 55-60 meters and is equipped with 50 nozzles, providing a wide coverage area. The elevation angle ranges from -5° to 35°, and the rotation angle spans 0-320°, allowing flexible adjustment of the spraying direction to meet various dust suppression and spraying needs in different scenarios.

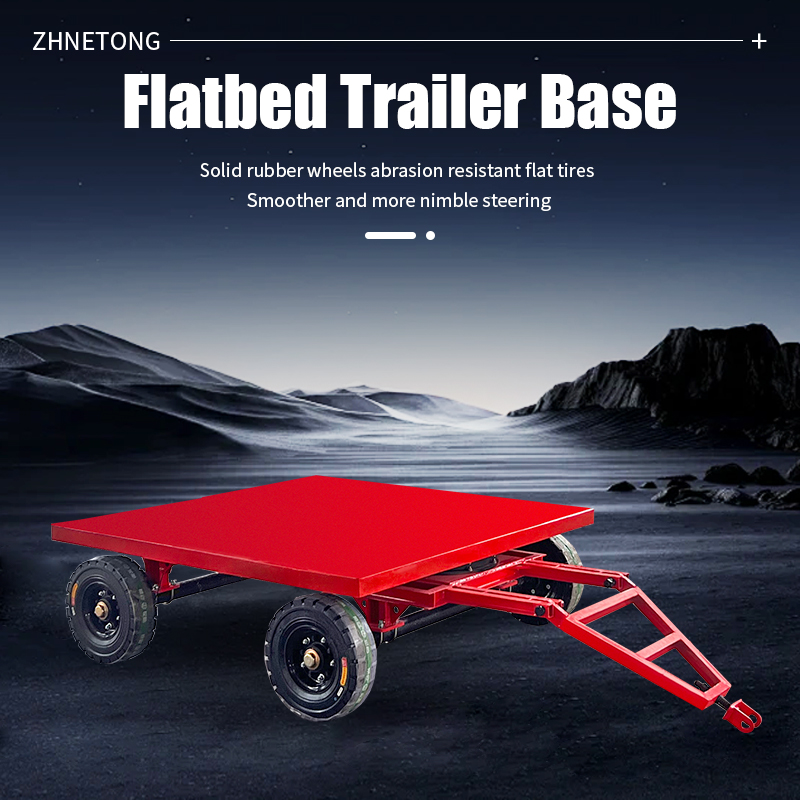

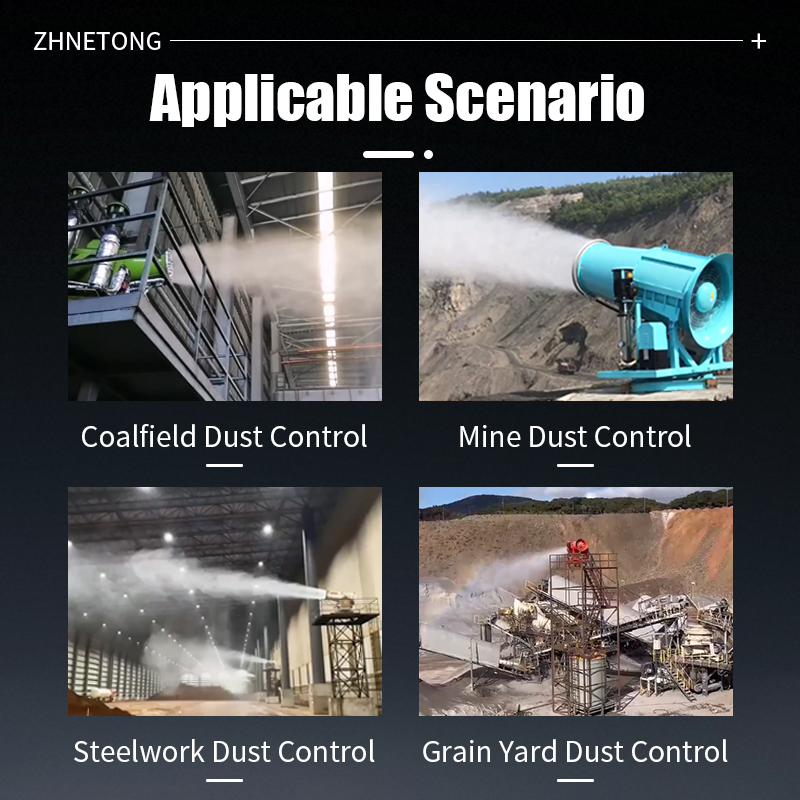

Its four-wheel trailer design facilitates easy movement and transfer between work sites, enabling efficient operations in construction sites, mining areas, and other locations. With precise parameters and flexible control, it provides strong support for environmental governance, helping to suppress dust and improve air quality. It is a practical equipment choice for industrial environmental management.

Dust Suppression System 60m Fog Cannon Machine in Material Yards

Description

MODEl	Static wind range (m)	Fan power (Kw)	Pump power (Kw)	Total power (Kw)	Pitch angle		Rotation angle	sprinkler		Noise at 20 meters (dB)	Weight(kg)
MODEl	Static wind range (m)	Fan power (Kw)	Pump power (Kw)	Total power (Kw)	Split	bax	Rotation angle	Standard	certer nozzle	Noise at 20 meters (dB)	Weight(kg)
ZT-20	20~25	1.5	1.1	≤3	-5~35°	-5~40°	0~350°	Single water ring 12	11	≤60	260
ZT-30	25~35	2.2	1.5	≤5	-5~35°	-5~40°	0~350°	Single water ring 12	11	≤65	290
ZT-35	35~40	3	2.2	≤6	-5~35°	-5~40°	0~350°	Single water ring 12	11	≤65	330
ZT-40	40~50	7.5	3	≤13	-5~35°	-5~40°	0~350°	Single water ring 24	15	≤68	440
ZT-50	55~60	11	3	≤16	-5~35°	-5~40°	0~350°	Single water ring 24	15	≤68	530
ZT-60	60~70	15	4	≤21	-5~35°	-5~40°	0~350°	Single water ring 30	15	≤75	640
ZT-70	70~80	22	5.5	≤30	-5~35°	-5~40°	0~350°	Single water ring 36	31	≤75	850
ZT-80	75~85	30	5.5	≤37	-5~35°	-5~40°	0~350°	Single water ring 46	31	≤75	960
ZT-90	80~90	37	7.5	≤46	-5~35°	-5~40°	0~350°	Single water ring 70	31	≤80	1580
ZT-100	90~100	45	7.5	≤55	-5~45°	-5~45°	0~350°	Single water ring 70	31	≤80	1610
ZT-110	100~110	55	11	≤68	-5~45°		0~350°	Single water ring 100	31	≤80	1850
ZT-120	100~120	75	15	≤92	-5~45°		0~350°	Single water ring 110	31	≤85	2350
ZT-130	110~140	75	18.5	≤86	-5~45°		0~350°	Single water ring 120	31	≤90	2850
