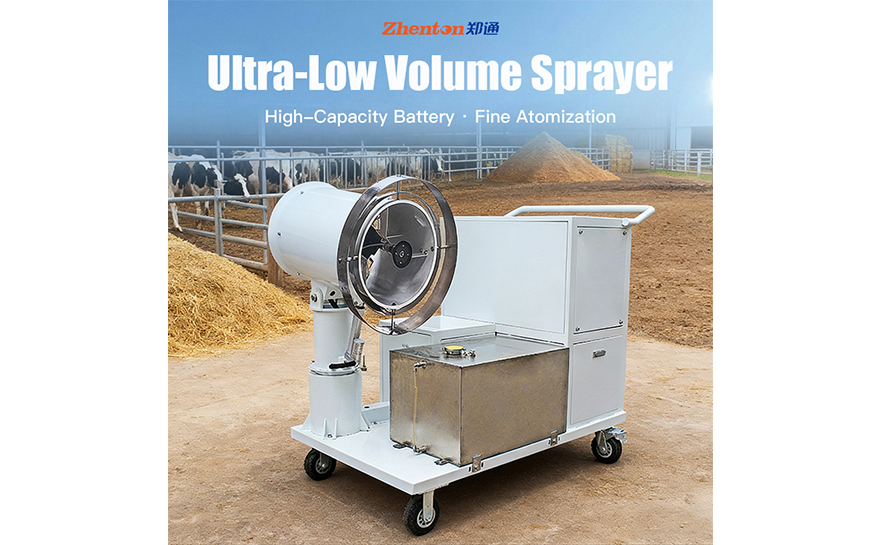

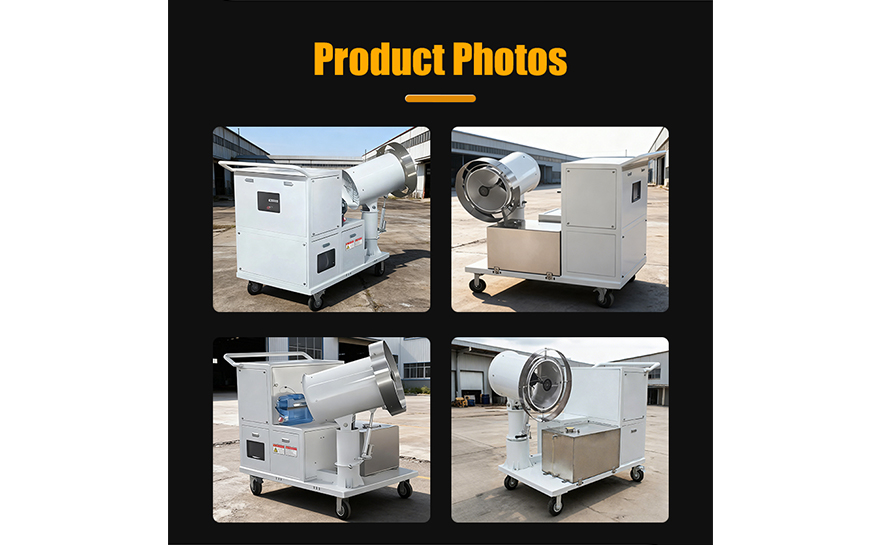

Zhenton Manufacturer 20m Ultra-Low Volume Water Mist Cannon Dust Suppression System for Sale

A ultra-low volume dust suppression system is a highly efficient dust-control solution designed to reduce air pollution while significantly lowering power consumption

Calm range:20mM Color:White Rotation angle:0-340°

Share With:

Youtube Facebook Instagram Twitter

A ultra-low volume dust suppression system is a highly efficient dust-control solution designed to reduce air pollution while significantly lowering power consumption. With optimized nozzles and an energy-saving motor, it produces fine mist that quickly captures airborne dust and brings it to the ground, ensuring clean and safer working conditions.

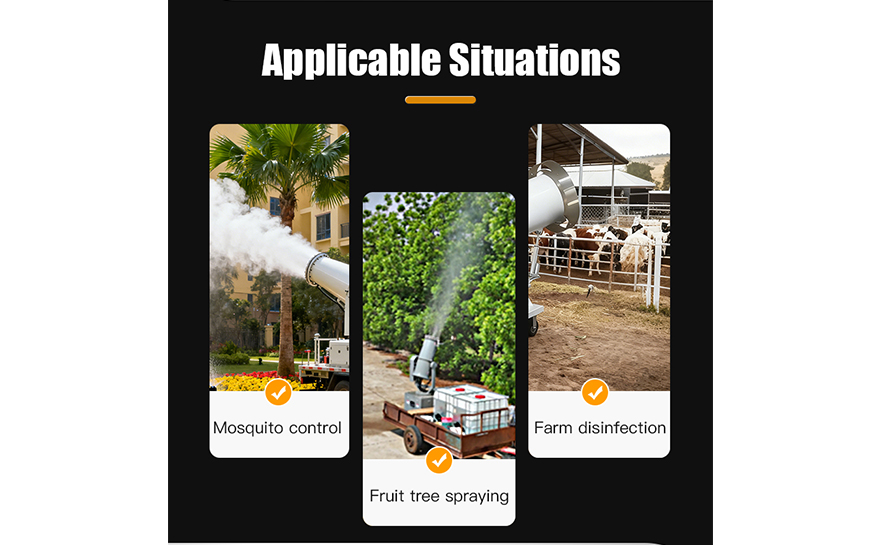

Despite its reduced energy use, the machine maintains strong spray distance and wide coverage, making it suitable for construction sites, mining operations, quarries, and bulk material handling. This eco-friendly design helps companies reduce operating costs, comply with environmental regulations, and improve onsite air quality with reliable, stable performance.

Zhenton Manufacturer 20m Ultra-Low Volume Water Mist Cannon Dust Suppression System for Sale

MODEl Static wind
range (m)
Fan power
(Kw)
Pump power
(Kw)
Total power
(Kw)
Pitch angle Rotation angle sprinkler Noise at 20
meters (dB)
Weight(kg)
Split bax Standard certer nozzle

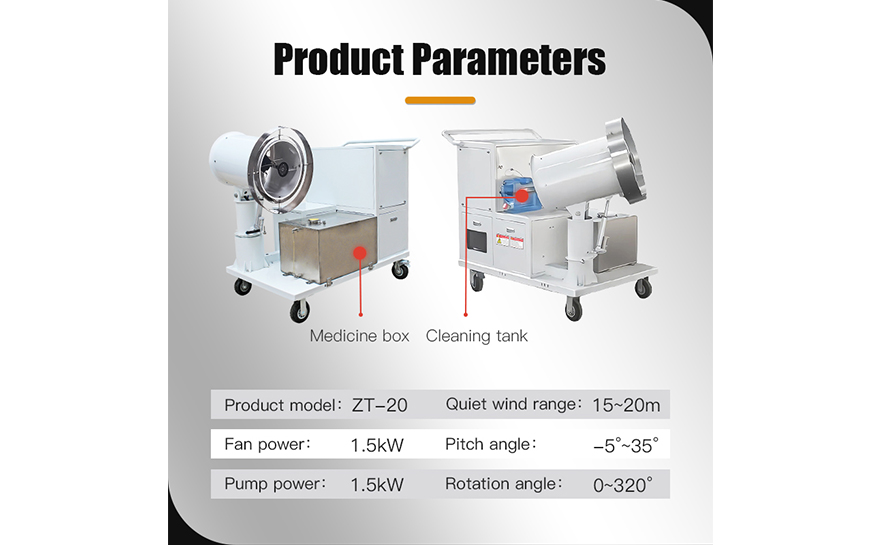

ZT-20 20~25 1.5 1.1 ≤3 -5~35° -5~40° 0~350° Single water ring 12 11 ≤60 260
ZT-30 25~35 2.2 1.5 ≤5 -5~35° -5~40° 0~350° Single water ring 12 11 ≤65 290
ZT-35 35~40 3 2.2 ≤6 -5~35° -5~40° 0~350° Single water ring 12 11 ≤65 330
ZT-40 40~50 7.5 3 ≤13 -5~35° -5~40° 0~350° Single water ring 24 15 ≤68 440
ZT-50 55~60 11 3 ≤16 -5~35° -5~40° 0~350° Single water ring 24 15 ≤68 530
ZT-60 60~70 15 4 ≤21 -5~35° -5~40° 0~350° Single water ring 30 15 ≤75 640
ZT-70 70~80 22 5.5 ≤30 -5~35° -5~40° 0~350° Single water ring 36 31 ≤75 850
ZT-80 75~85 30 5.5 ≤37 -5~35° -5~40° 0~350° Single water ring 46 31 ≤75 960
ZT-90 80~90 37 7.5 ≤46 -5~35° -5~40° 0~350° Single water ring 70 31 ≤80 1580
ZT-100 90~100 45 7.5 ≤55 -5~45° -5~45° 0~350° Single water ring 70 31 ≤80 1610
ZT-110 100~110 55 11 ≤68 -5~45° 0~350° Single water ring 100 31 ≤80 1850
ZT-120 100~120 75 15 ≤92 -5~45° 0~350° Single water ring 110 31 ≤85 2350
ZT-130 110~140 75 18.5 ≤86 -5~45° 0~350° Single water ring 120 31 ≤90 2850
